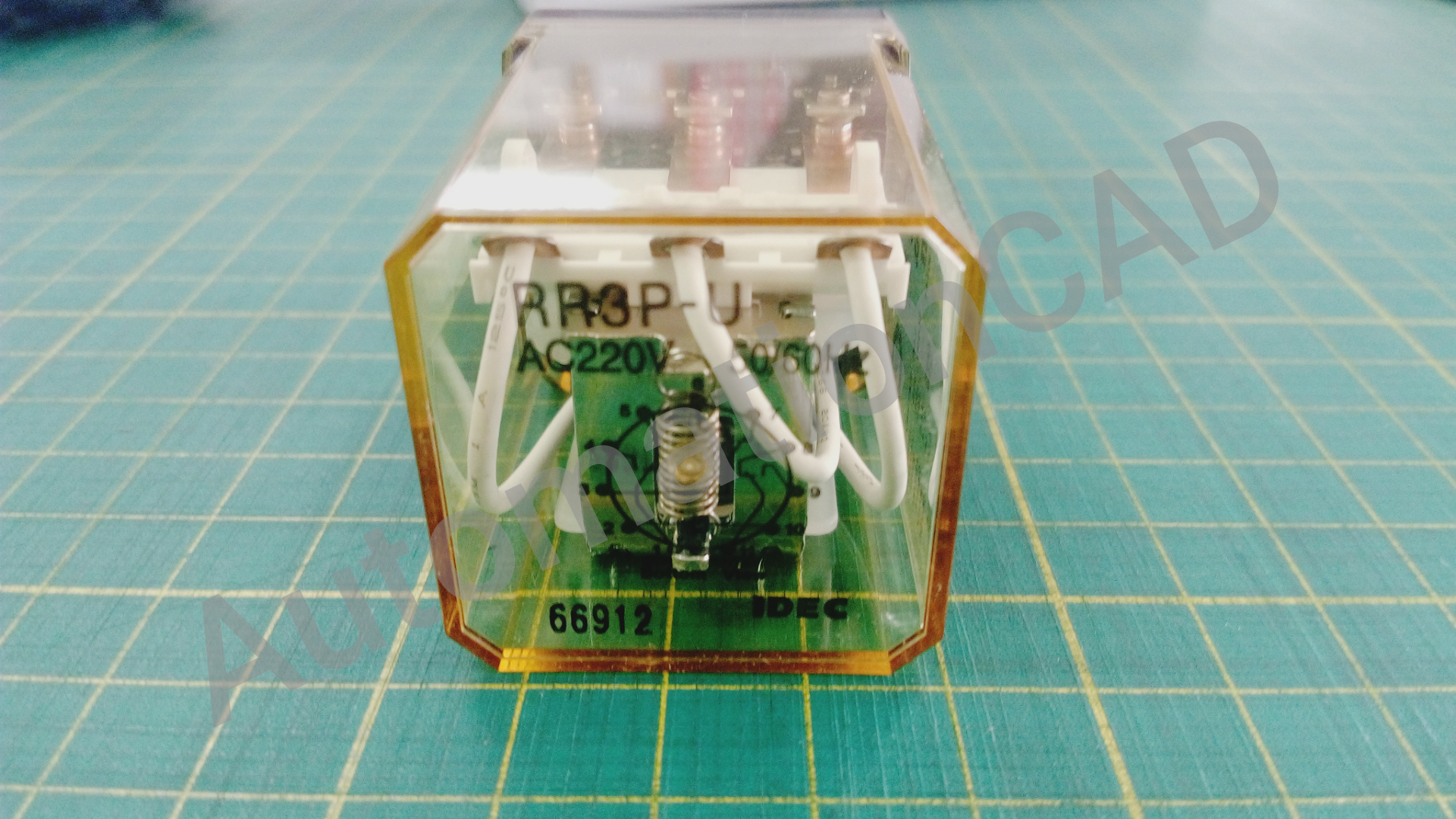

RELAY IDEC ไม่มี LED 220VAC 10A CONTACTS 10ชิ้น/แพ็ค

Rated voltage		Rated current*		Coil Resistance (Ω) ±10% at 20°C	Operation Characteristics (against rated values at 20°C)
		50 Hz	60 Hz		Max. Continuous Applied Voltage	Minimum Pickup Voltage	Dropout Voltage
AC (50/60 Hz)	6	490	420	4.9	110%	80% maximum	30% minimum
	12	245	210	18
	24	121	105	79
	50	58	50	350
	100	29	25	1,370
	110	27	23	1,680
	115	25	21.5	1,800
	120	24	20.5	2,100
	200	14.5	12.5	5,740
	220	13.3	11.5	7,360
	230	12.7	11	7,830
	240	12.1	10.5	8,330
DC	6	240		25	110%	80% maximum	15% minimum
	12	120		100
	24	60		400
	48	30		1,600
	110	13		8,460

Maximum Contact Copacity
Continuous Current	Allowable Contact Power		Rated Load
	Resistive Load	Inductive Load	Voltage	Resistive Load	Inductive Load
10A	1650VA AC 300W DC	1100VA AC 150W DC	110V AC	10 A	7.5 A
			220V AC	7.5 A	5 A
			30V DC	10 A	5 A

Note: Inductive load for the rated load — cos ø = 0.3, L/R = 7 ms

Specifications

Contact Material		Silver
Contact Resistance              *1		30 mΩ maximum
Minimum Applicable Load		24V DC, 10 mA; 5V DC, 20 mA (reference value)
Operate Time                      *2		25 ms maximum
Release Time                       *2		25 ms maximum
Power Consumption (approx.)		AC: 3 VA (50 Hz), 2.5 VA (60 Hz)   DC: 1.5W
Insulation Resistance		100 MΩ minimum (500V DC megger)
Dielectric Strength	Pin Terminal	Between live and dead parts: 1500V AC, 1 minute   Between contact and coil:      1500V AC, 1 minute   Between contacts of different poles: 1500V AC, 1 minute   Between contacts of the same pole: 1000V AC, 1 minute
	Blade Terminal	Between live and dead parts: 2000V AC, 1 minute   Between contact and coil:      2000V AC, 1 minute   Between contacts of different poles: 2000V AC, 1 minute   Between contacts of the same pole: 1000V AC, 1 minute
Operating Frequency		Electrical:    1800 operations/h maximum   Mechanical: 18,000 operations/h maximum
Vibration Resistance		Damage limits: 10 to 55 Hz, amplitude 0.5 mm   Operating extremes: 10 to 55 Hz, amplitude 0.5 mm
Shock Resistance		Damage limits: 1000 m/s2   Operating extremes: 100 m/s2
Electrical Life		200,000 operations (220V AC, 5A)
Mechanical Life		10,000,000 operations
Operating Temperature         *3		–25 to +40°C (no freezing)
Operating Humidity		5 to 85% RH (no condensation)
Weight (approx.) (Basic type)		RR2P: 90g, RR3P/RR3PA: 96g, RR1BA/RR2BA/RR3B: 82g

Note: Above values are initial values.
∗1: Measured using 5V DC, 1A voltage drop method
∗2: Measured at the rated voltage (at 20°C), excluding contact bouncing
∗3: For use under different temperature conditions, refer to Continuous Load Current vs. Operating Temperature Curve.
