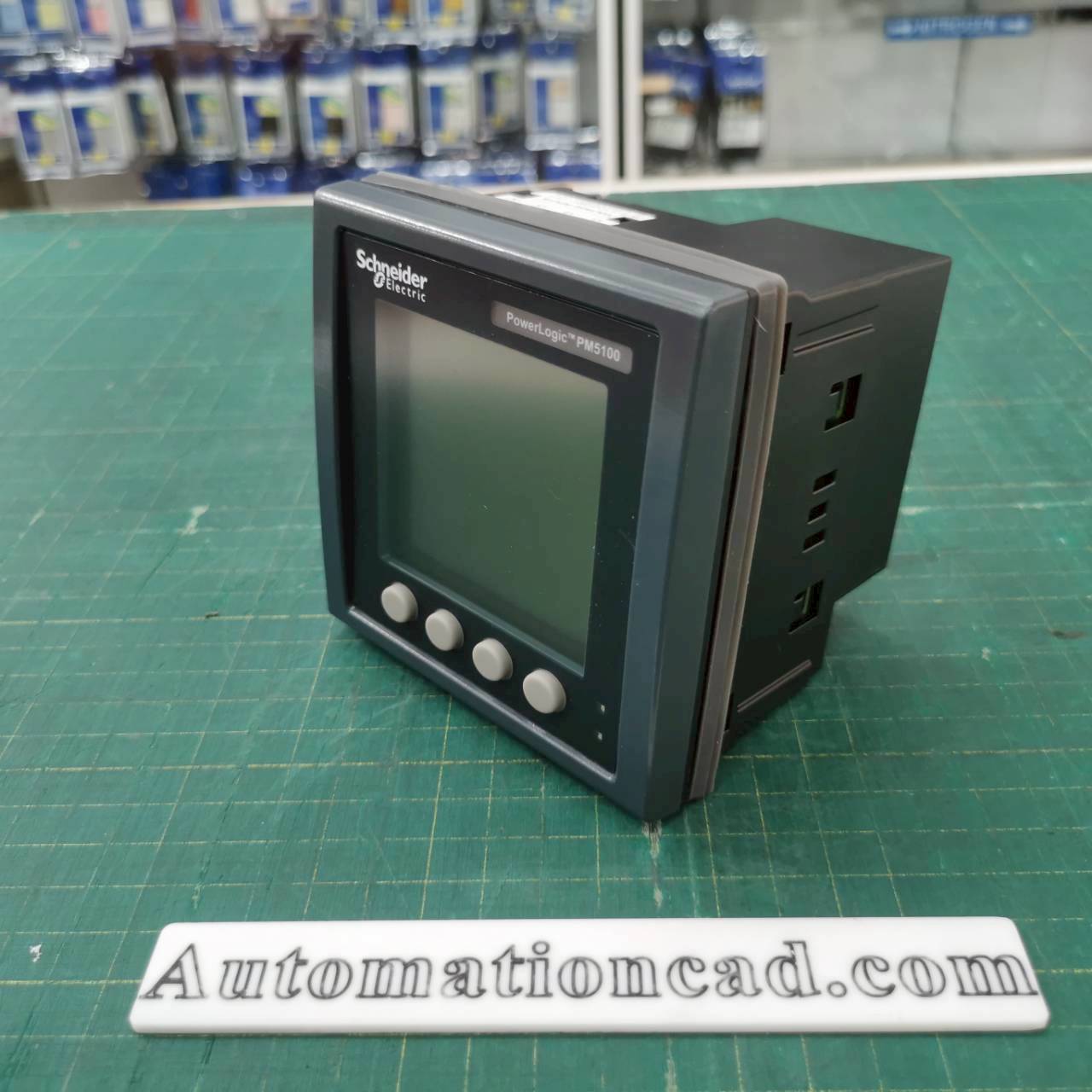

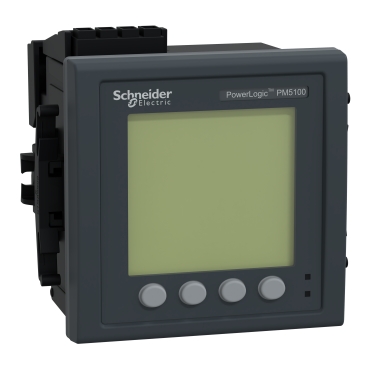

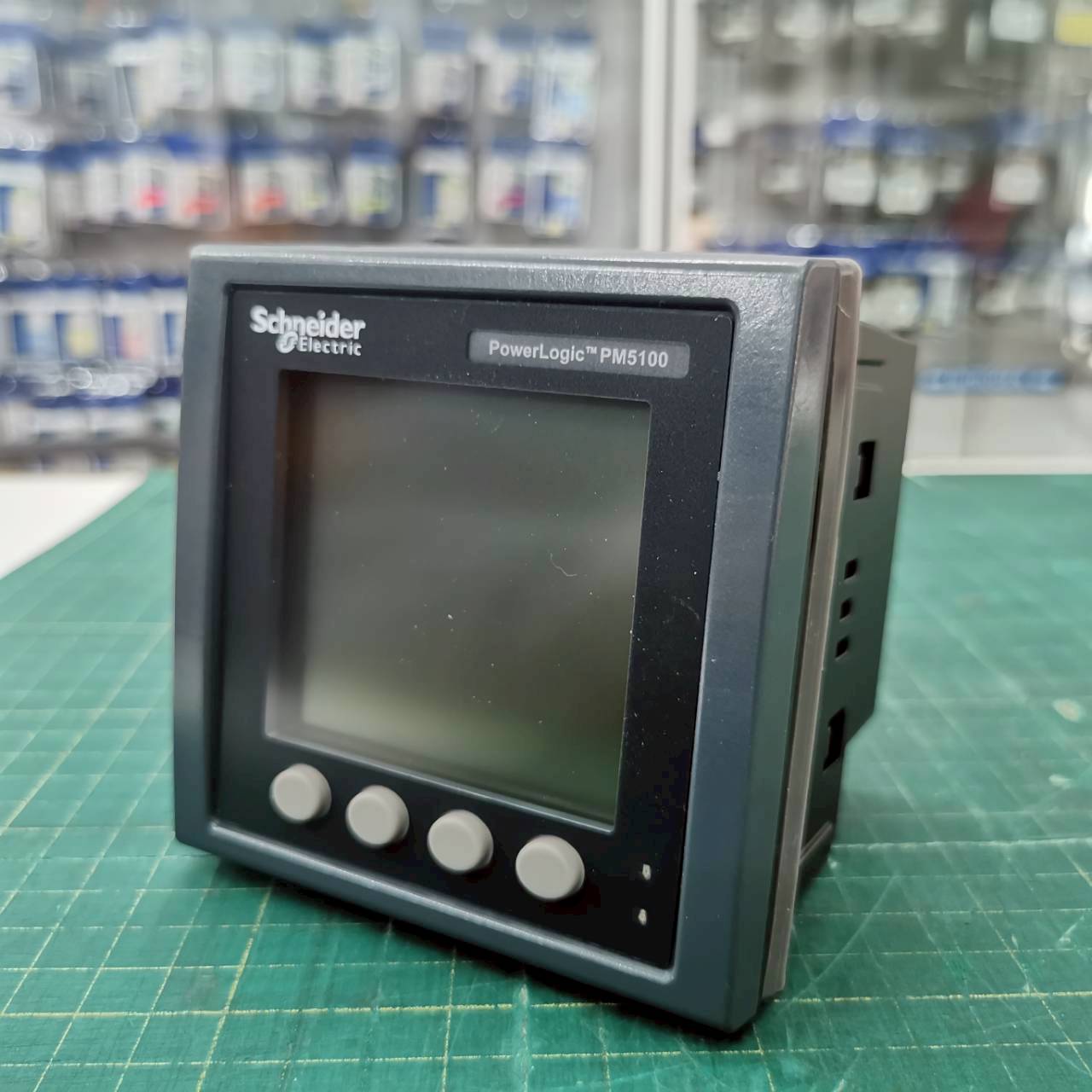

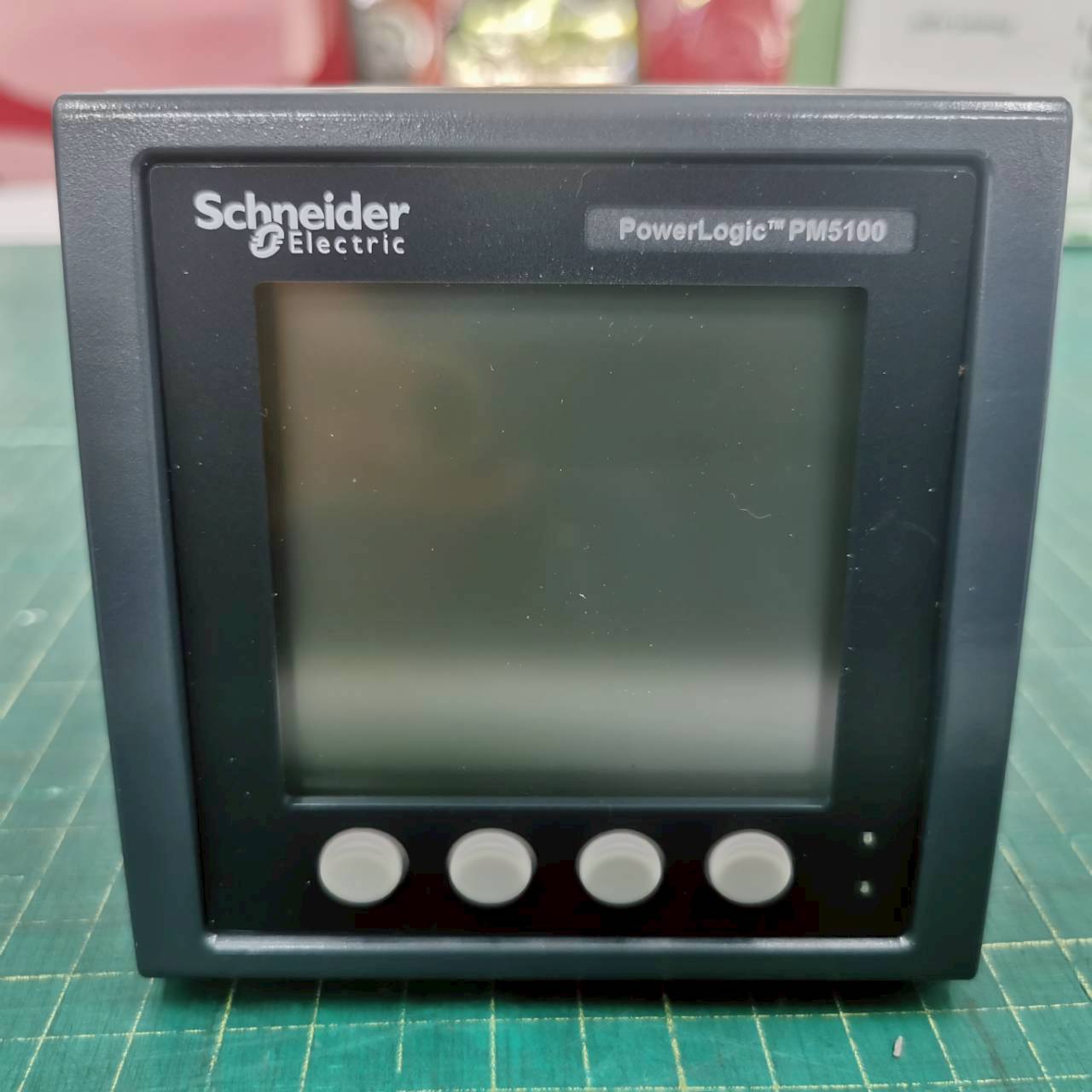

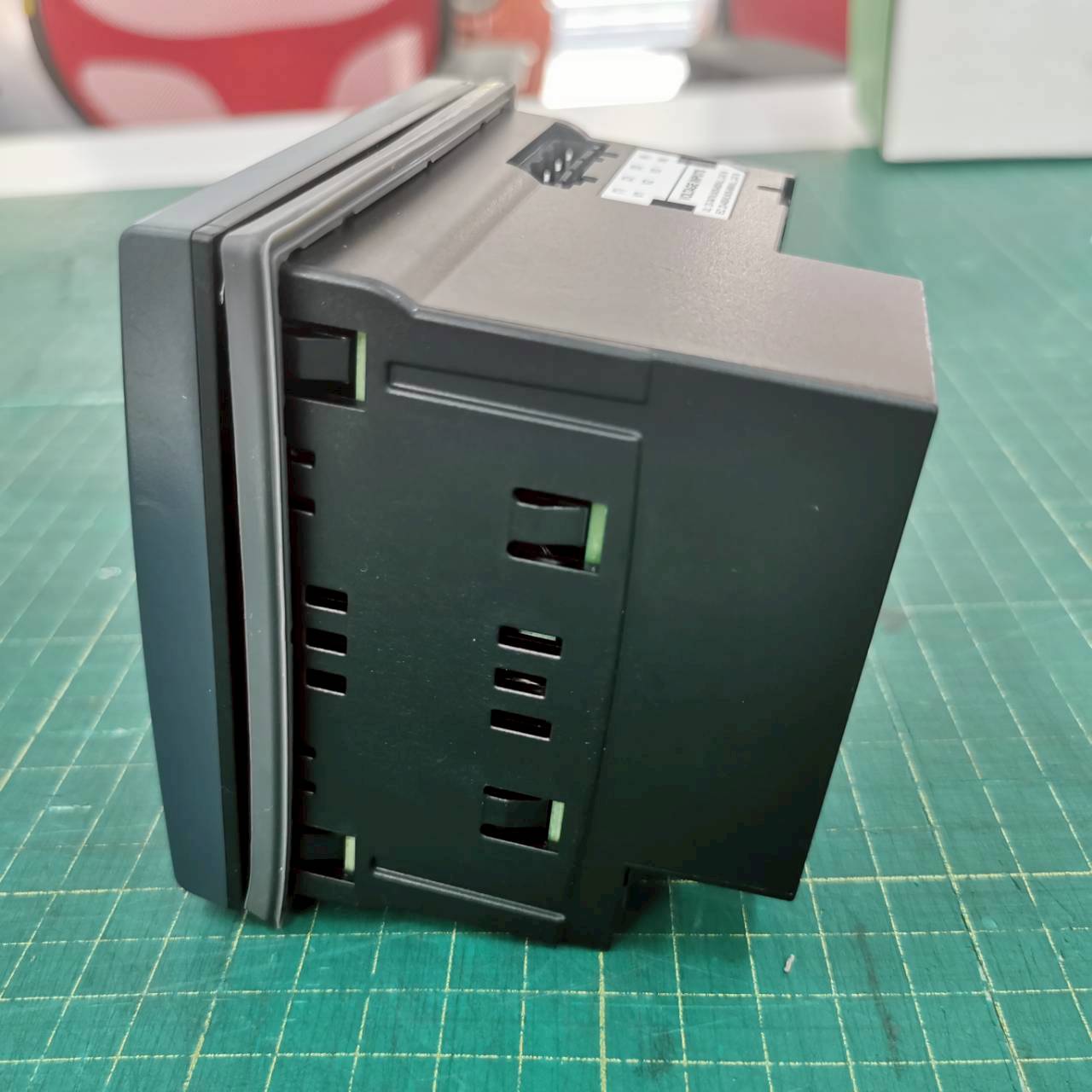

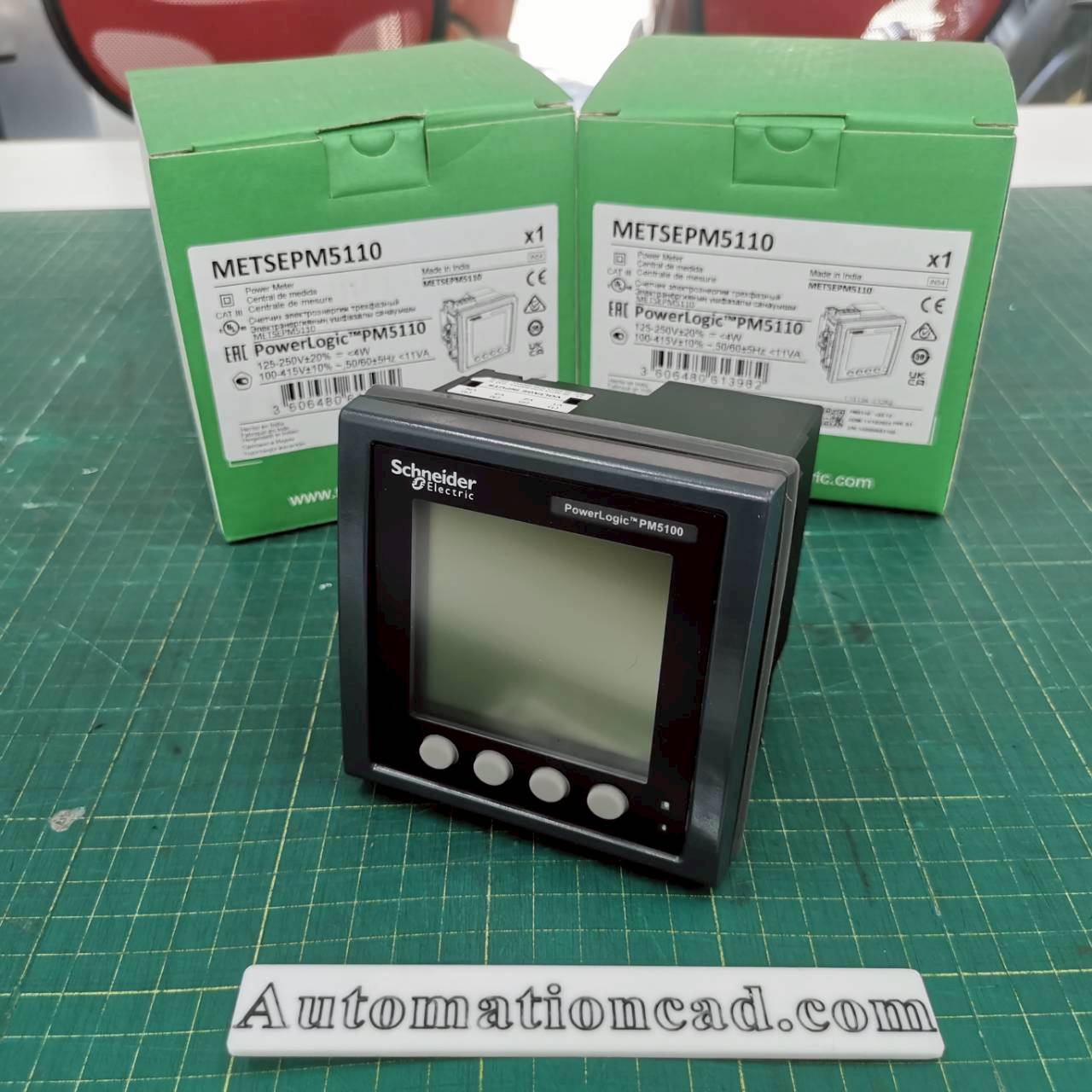

SCHNEIDER Power & Energy Meter
พาวเวอร์มิเตอร์ มิเตอร์วัดพลังงานไฟฟ้า รุ่น PM5110
Brand • Schneider
Model • METSEPM5110
หน้าจอแสดงผล • Monochrome graphical LCD of 128 x 128 resolution
Rated power • 1 A 5 A
Network frequency • 50 Hz 60 Hz
Mounting mode • Flush mounting
ความกว้าง • 96 mm
ความสูง • 96 mm
ความลึก • 72 mm

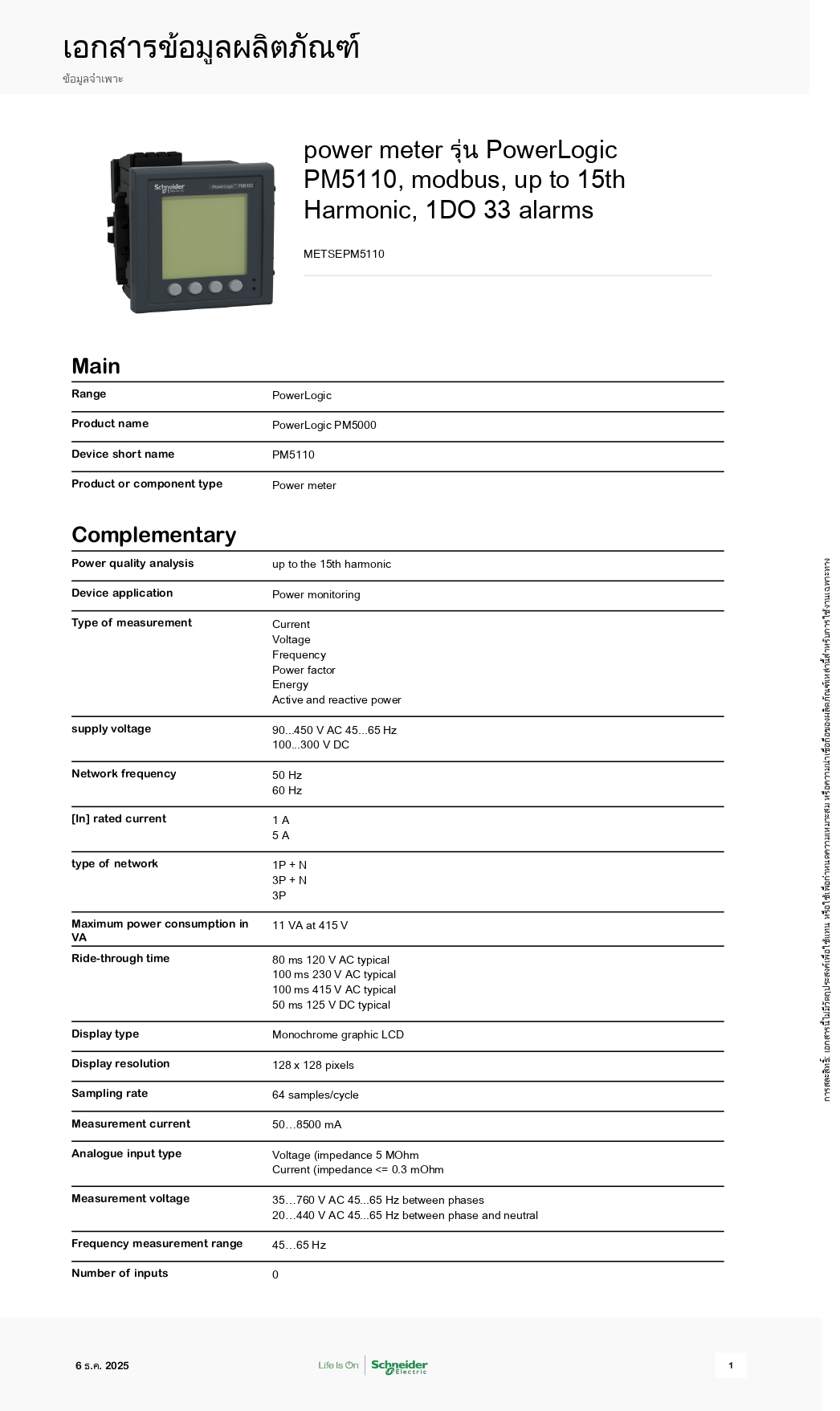

ข้อมูลจำเพาะ
Main
| Range |
PowerLogic |
| Product name |
PowerLogic PM5000 |
| Device short name |
PM5110 |
| Product or component type |
Power meter |
Complementary
| Power quality analysis |
up to the 15th harmonic |
| Device application |
Power monitoring |
| Type of measurement |
Current
Voltage
Frequency
Power factor
Energy
Active and reactive power |
| supply voltage |
90...450 V AC 45...65 Hz
100...300 V DC |
| Network frequency |
50 Hz
60 Hz |
| [In] rated current |
1 A
5 A |
| type of network |
1P + N
3P + N
3P |
| Maximum power consumption in VA |
11 VA at 415 V |
| Ride-through time |
80 ms 120 V AC typical
100 ms 230 V AC typical
100 ms 415 V AC typical
50 ms 125 V DC typical |
| Display type |
Monochrome graphic LCD |
| Display resolution |
128 x 128 pixels |
| Sampling rate |
64 samples/cycle |
| Measurement current |
50…8500 mA |
| Analogue input type |
Voltage (impedance 5 MOhm
Current (impedance <= 0.3 mOhm |
| Measurement voltage |
35…760 V AC 45...65 Hz between phases
20…440 V AC 45...65 Hz between phase and neutral |
| Frequency measurement range |
45…65 Hz |
| Number of inputs |
0 |

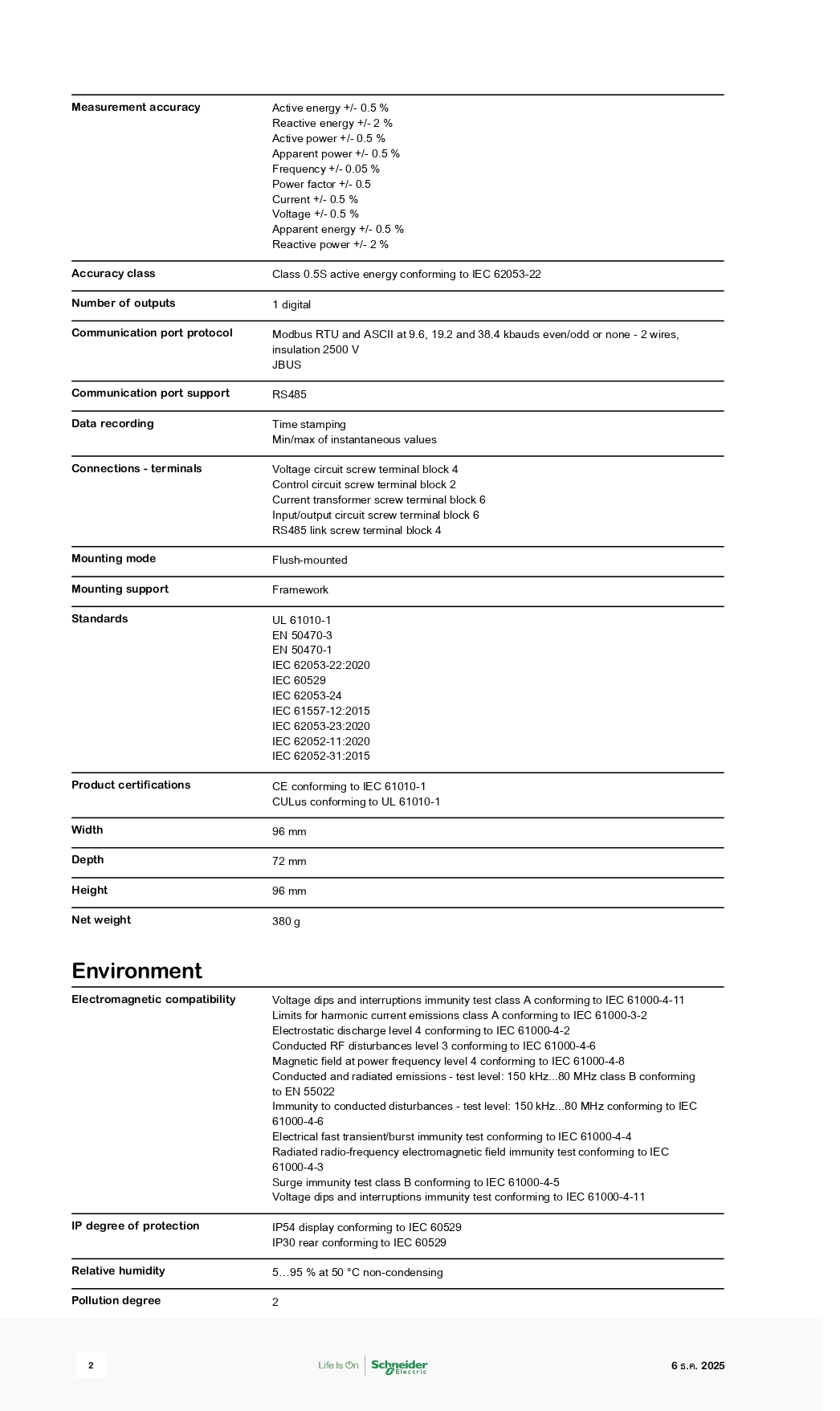

| Measurement accuracy |
Active energy +/- 0.5 %
Reactive energy +/- 2 %
Active power +/- 0.5 %
Apparent power +/- 0.5 %
Frequency +/- 0.05 %
Power factor +/- 0.5
Current +/- 0.5 %
Voltage +/- 0.5 %
Apparent energy +/- 0.5 %
Reactive power +/- 2 % |
| Accuracy class |
Class 0.5S active energy conforming to IEC 62053-22 |
| Number of outputs |
1 digital |
| Communication port protocol |
Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires, insulation 2500 V
JBUS |
| Communication port support |
RS485 |
| Data recording |
Time stamping
Min/max of instantaneous values |

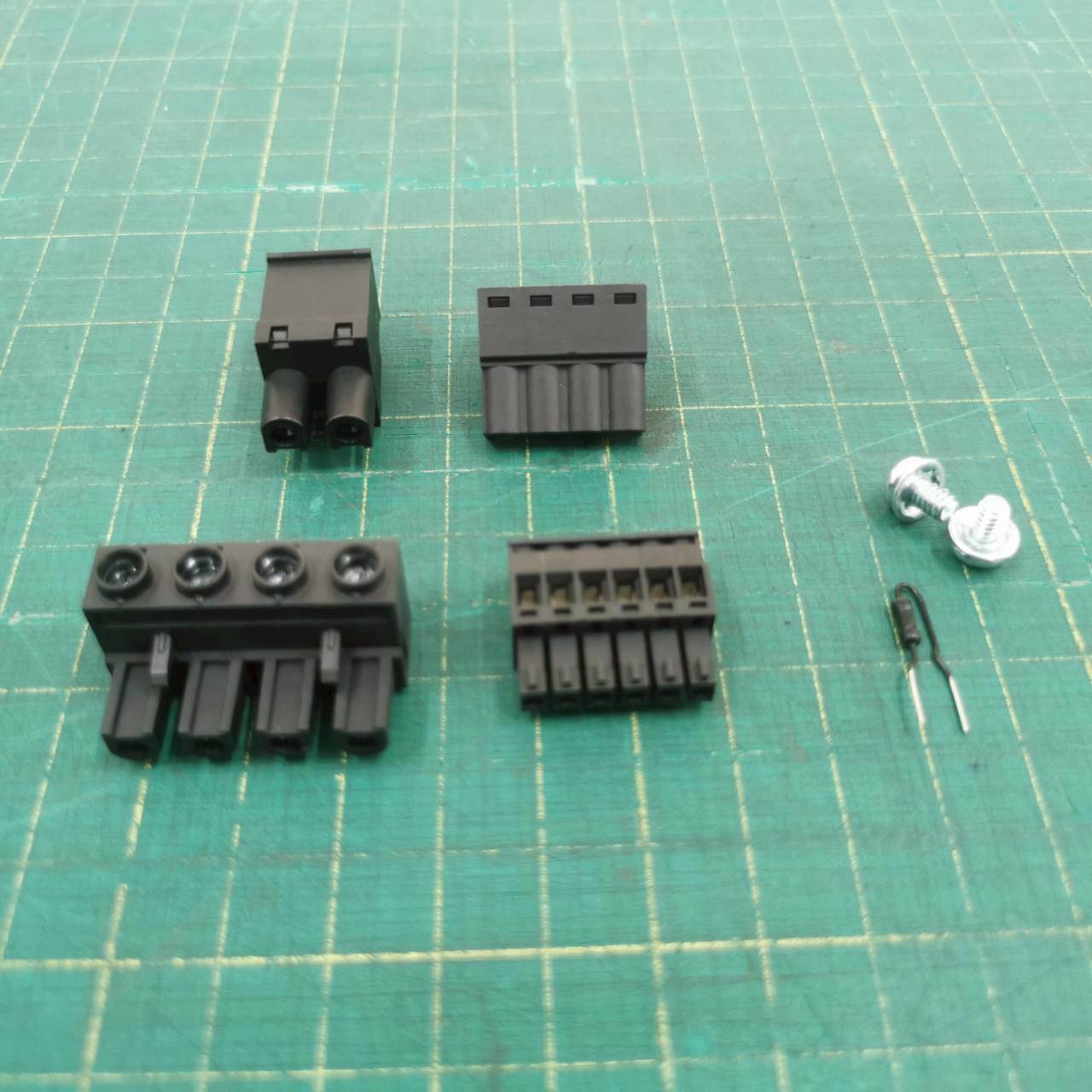

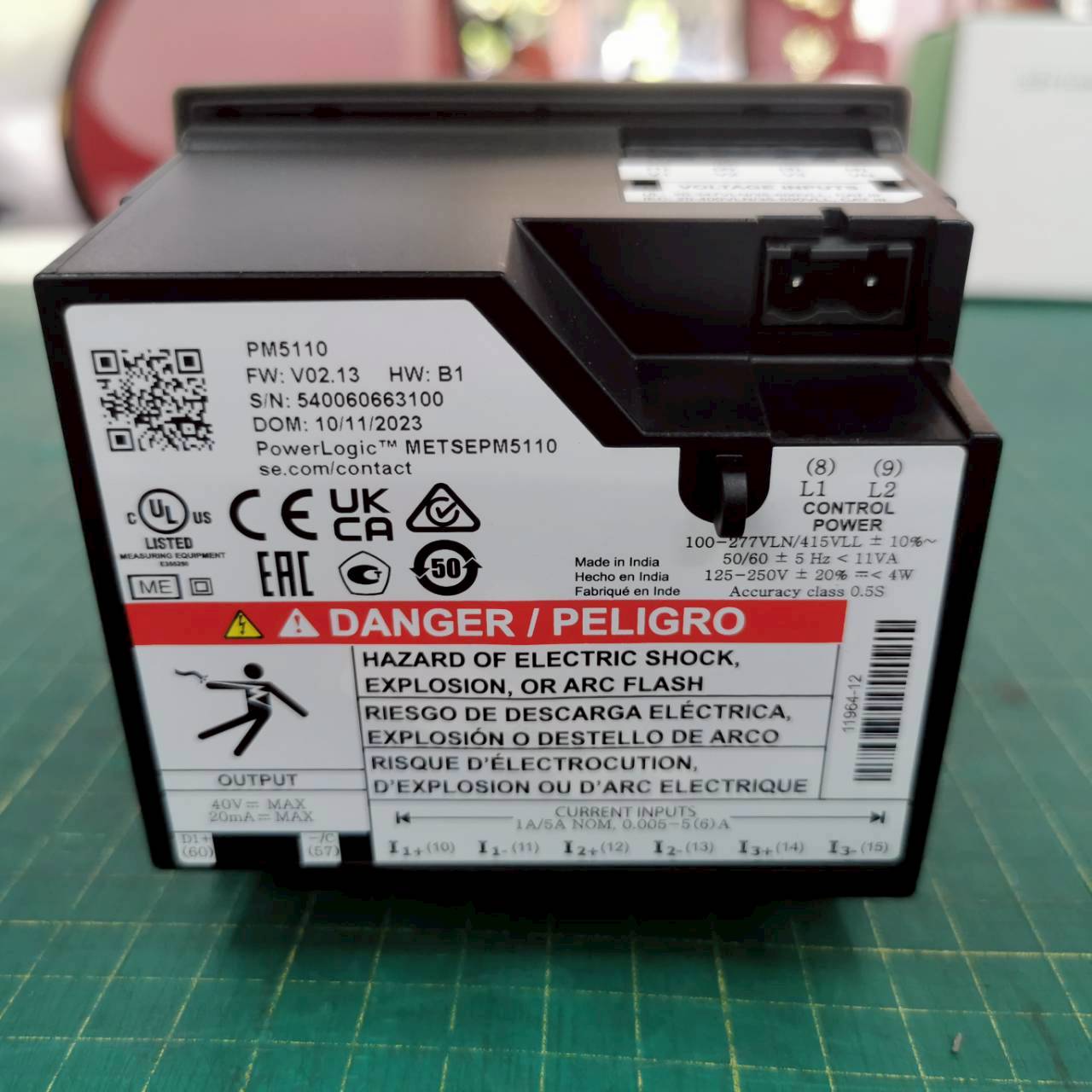

| Connections - terminals |

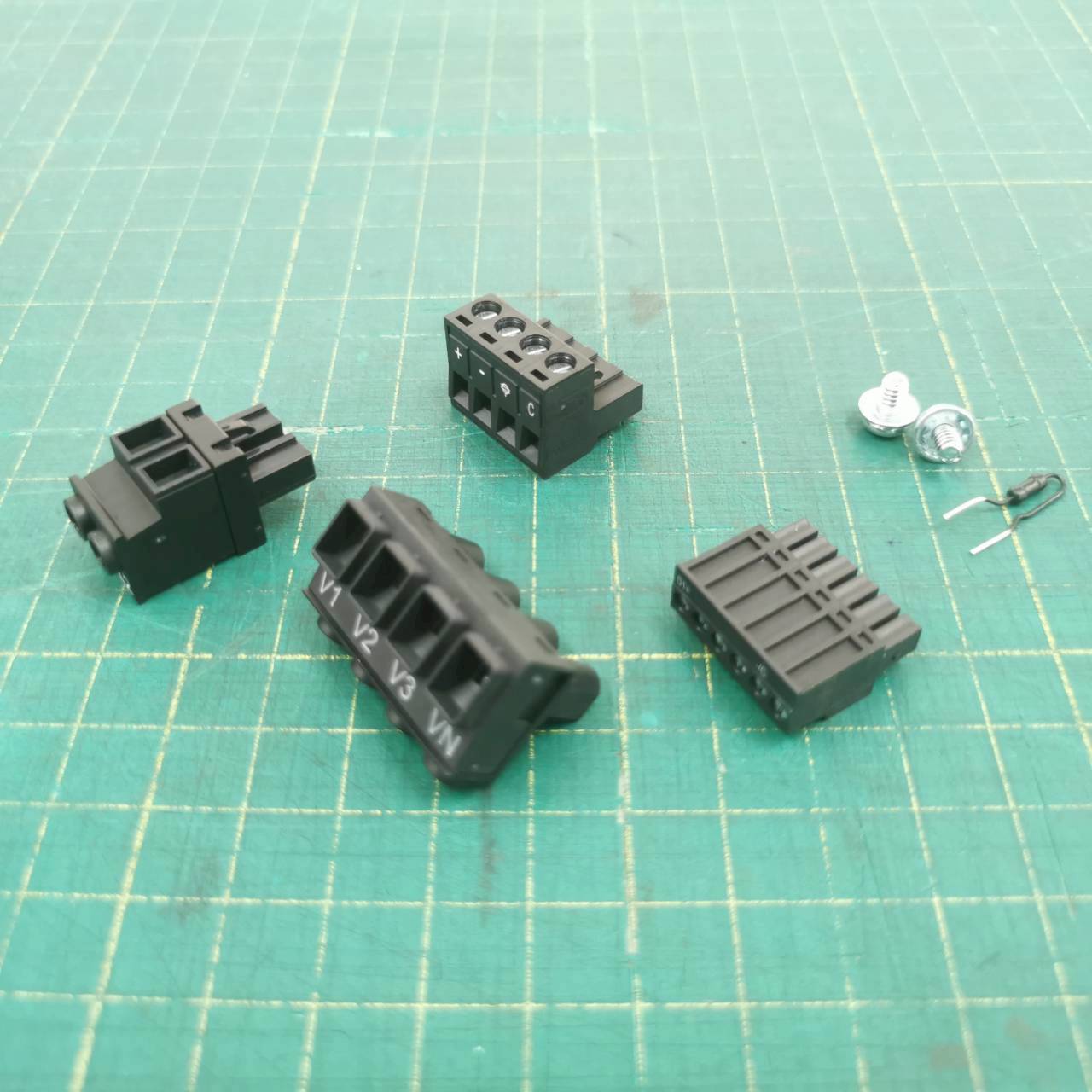

Voltage circuit screw terminal block 4
Control circuit screw terminal block 2
Current transformer screw terminal block 6
Input/output circuit screw terminal block 6
RS485 link screw terminal block 4 |
| Mounting mode |
Flush-mounted |

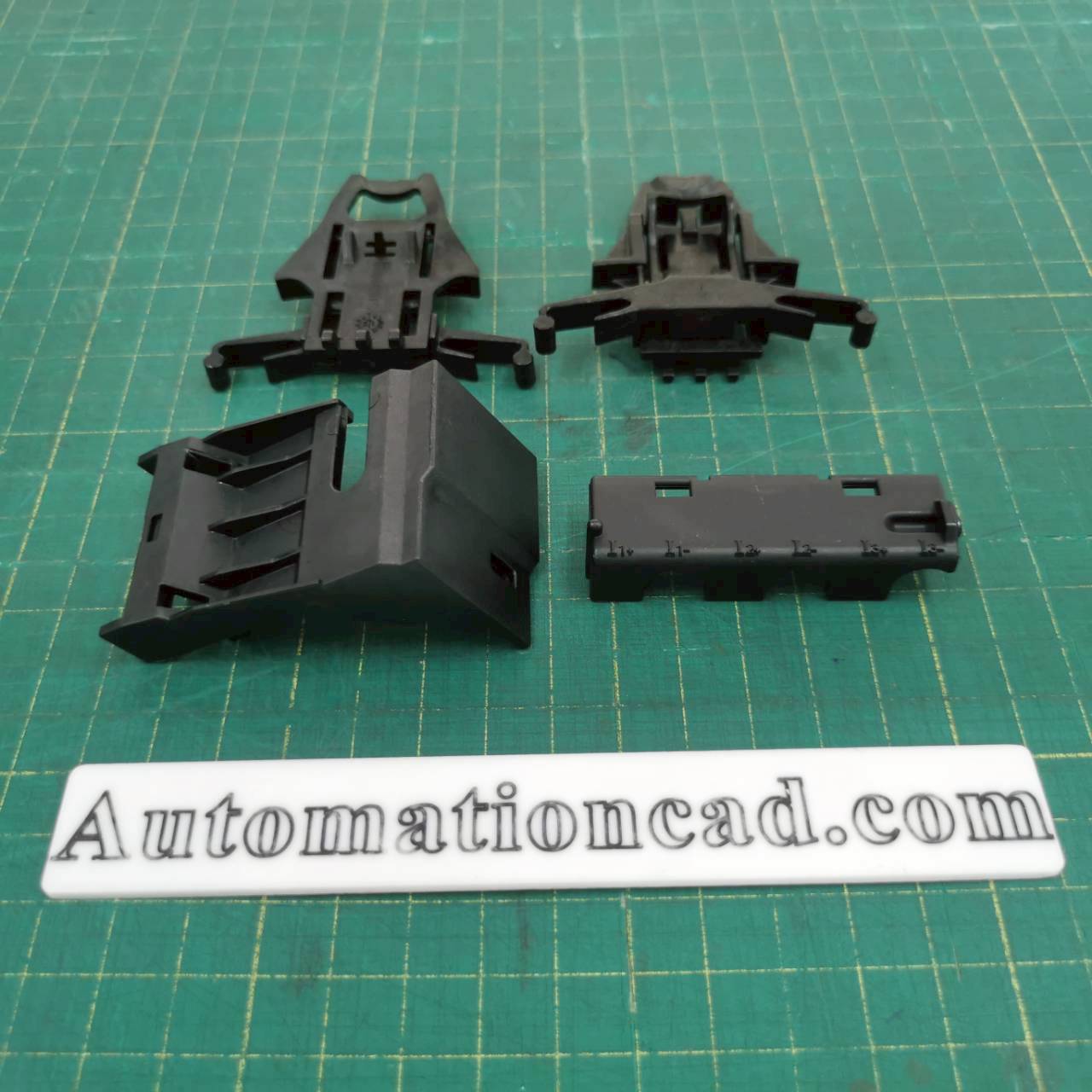

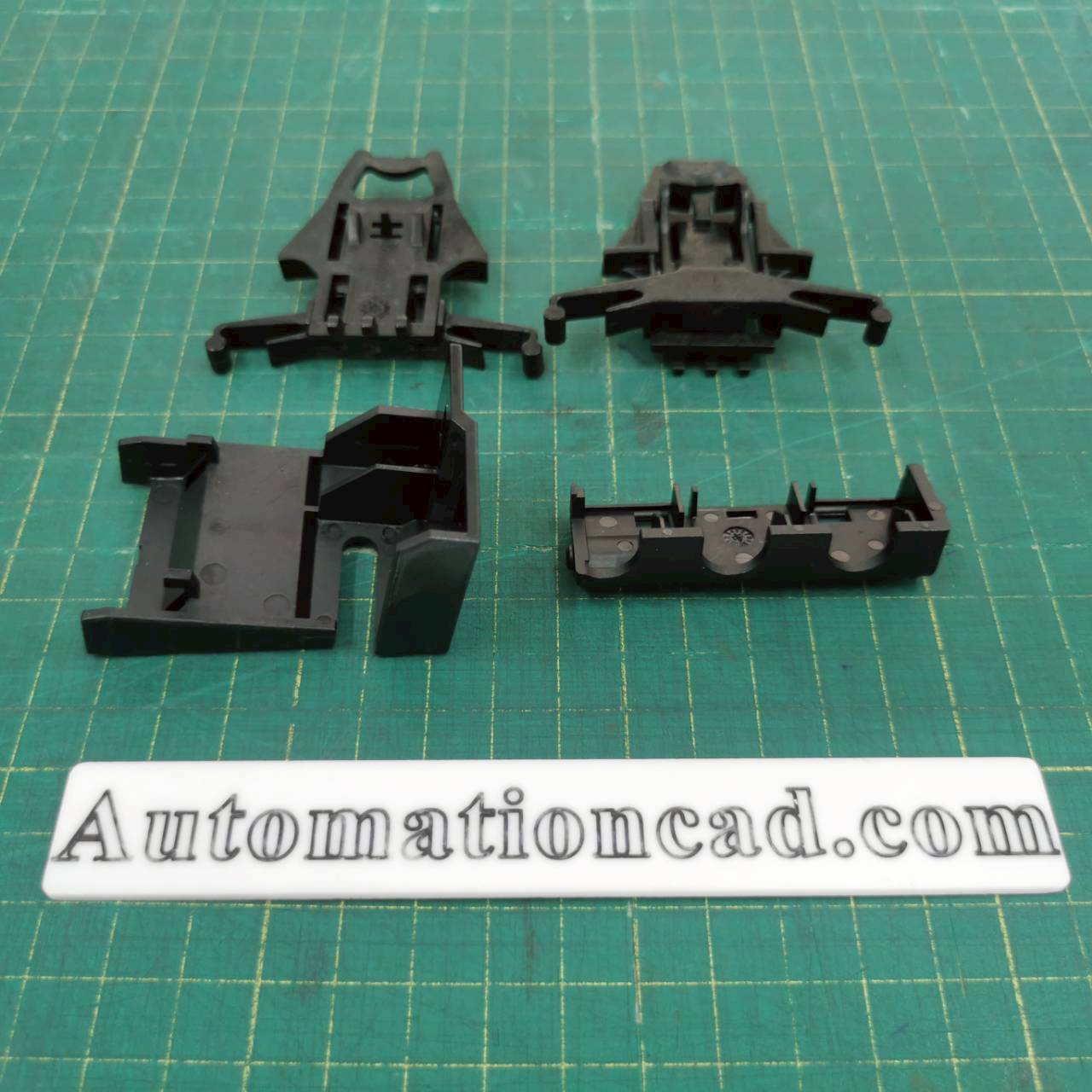

| Mounting support |
Framework |
| Standards |
UL 61010-1
EN 50470-3
EN 50470-1
IEC 62053-22:2020
IEC 60529
IEC 62053-24
IEC 61557-12:2015
IEC 62053-23:2020
IEC 62052-11:2020
IEC 62052-31:2015 |
| Product certifications |
CE conforming to IEC 61010-1
CULus conforming to UL 61010-1 |
| Width |
96 mm |
| Depth |
72 mm |
| Height |
96 mm |
| Net weight |
380 g |
Environment
| Electromagnetic compatibility |
Voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11
Limits for harmonic current emissions class A conforming to IEC 61000-3-2
Electrostatic discharge level 4 conforming to IEC 61000-4-2
Conducted RF disturbances level 3 conforming to IEC 61000-4-6
Magnetic field at power frequency level 4 conforming to IEC 61000-4-8
Conducted and radiated emissions - test level: 150 kHz...80 MHz class B conforming to EN 55022
Immunity to conducted disturbances - test level: 150 kHz...80 MHz conforming to IEC 61000-4-6
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
Surge immunity test class B conforming to IEC 61000-4-5
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| IP degree of protection |
IP54 display conforming to IEC 60529
IP30 rear conforming to IEC 60529 |
| Relative humidity |
5…95 % at 50 °C non-condensing |
| Pollution degree |
2 |
| Ambient air temperature for operation |
-25…70 °C meter
-20…70 °C display
-25…-20 °C (with reduced performance display |
| Ambient air temperature for storage |
-40…85 °C |
| Operating altitude |
2000 m CAT III |

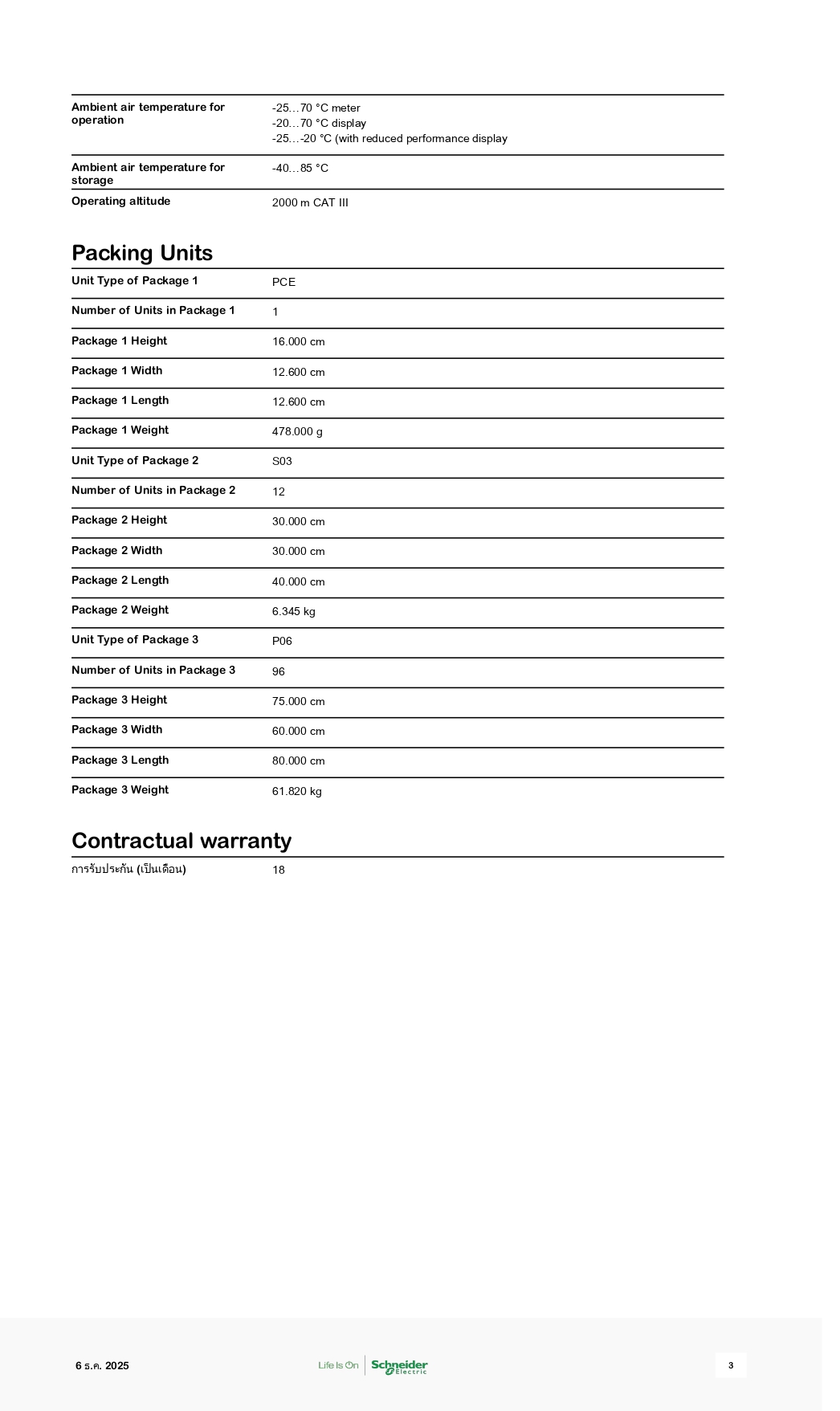

Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
16.000 cm |
| Package 1 Width |
12.600 cm |
| Package 1 Length |
12.600 cm |
| Package 1 Weight |
478.000 g |
| Unit Type of Package 2 |
S03 |
| Number of Units in Package 2 |
12 |
| Package 2 Height |
30.000 cm |
| Package 2 Width |
30.000 cm |
| Package 2 Length |
40.000 cm |
| Package 2 Weight |
6.345 kg |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
96 |
| Package 3 Height |
75.000 cm |
| Package 3 Width |
60.000 cm |
| Package 3 Length |
80.000 cm |
| Package 3 Weight |
61.820 kg |

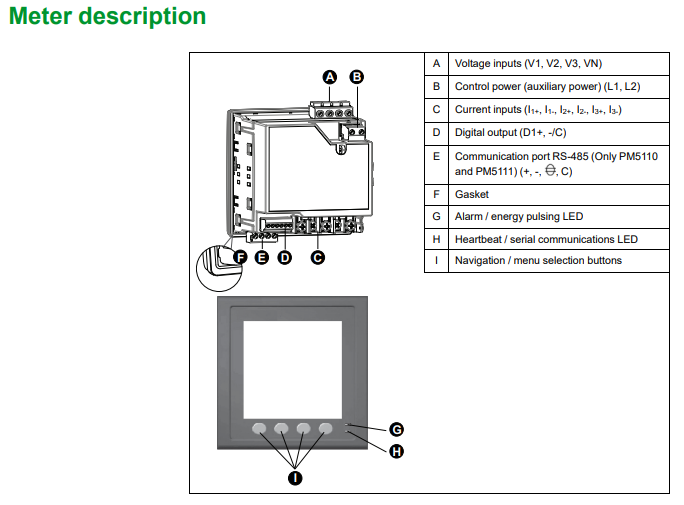

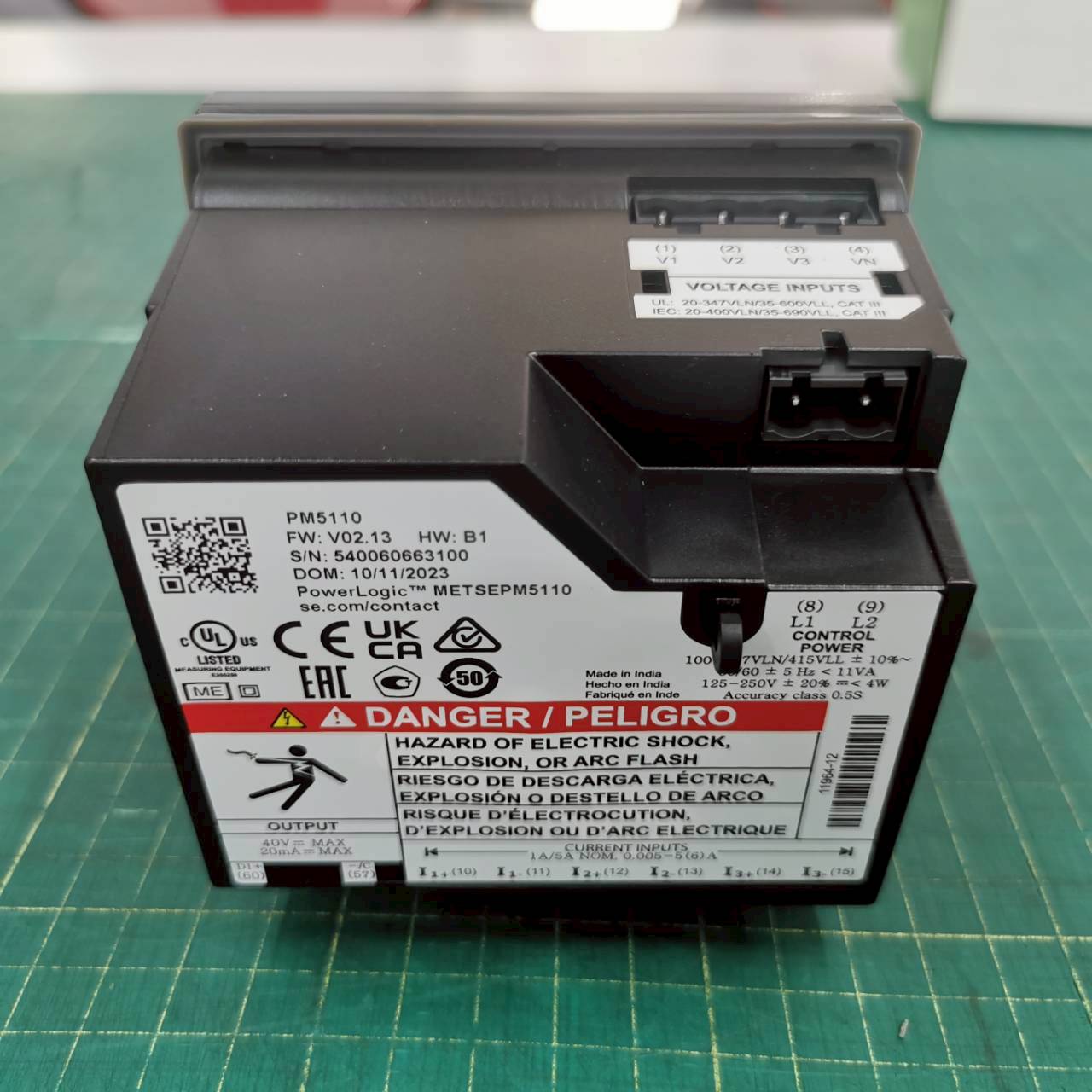

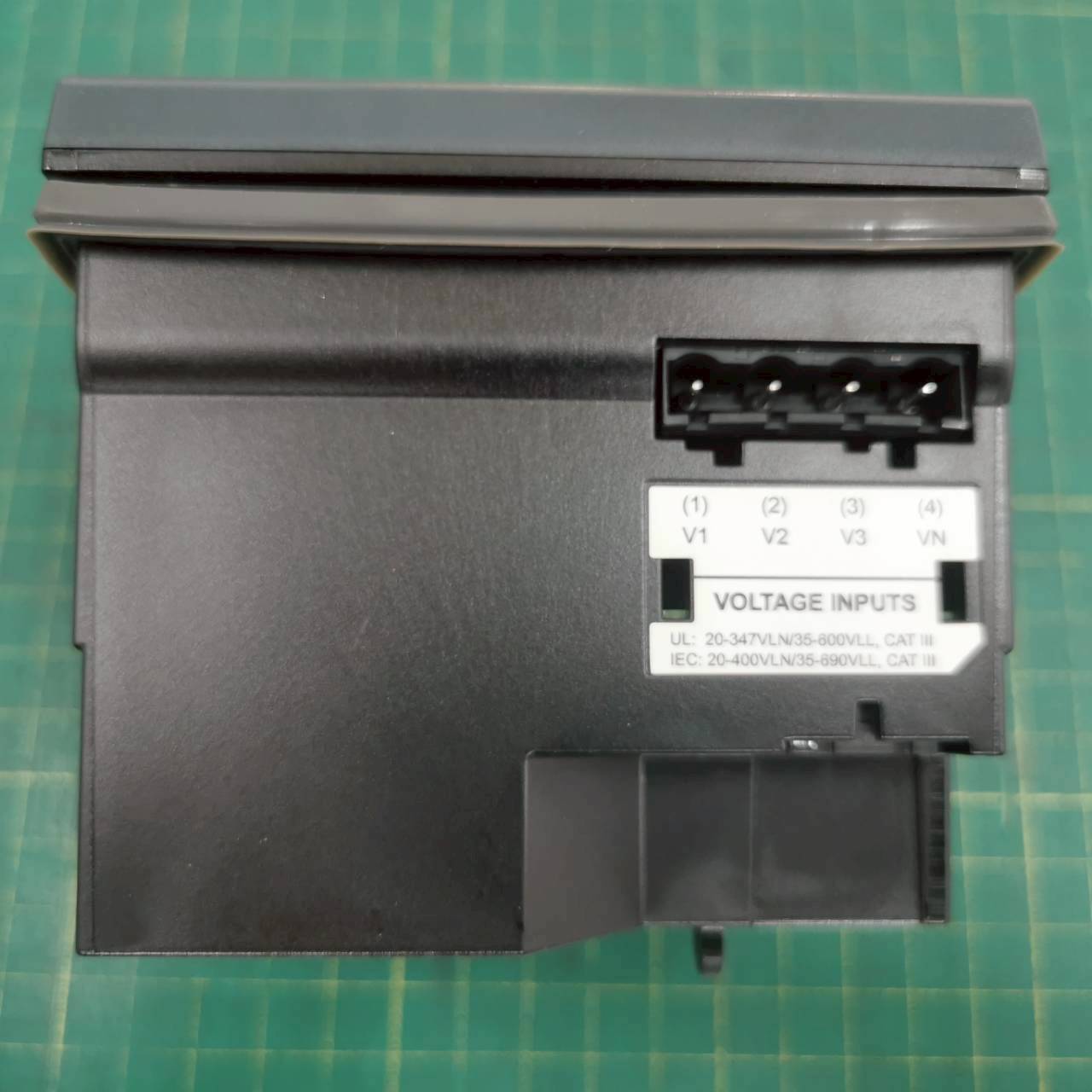

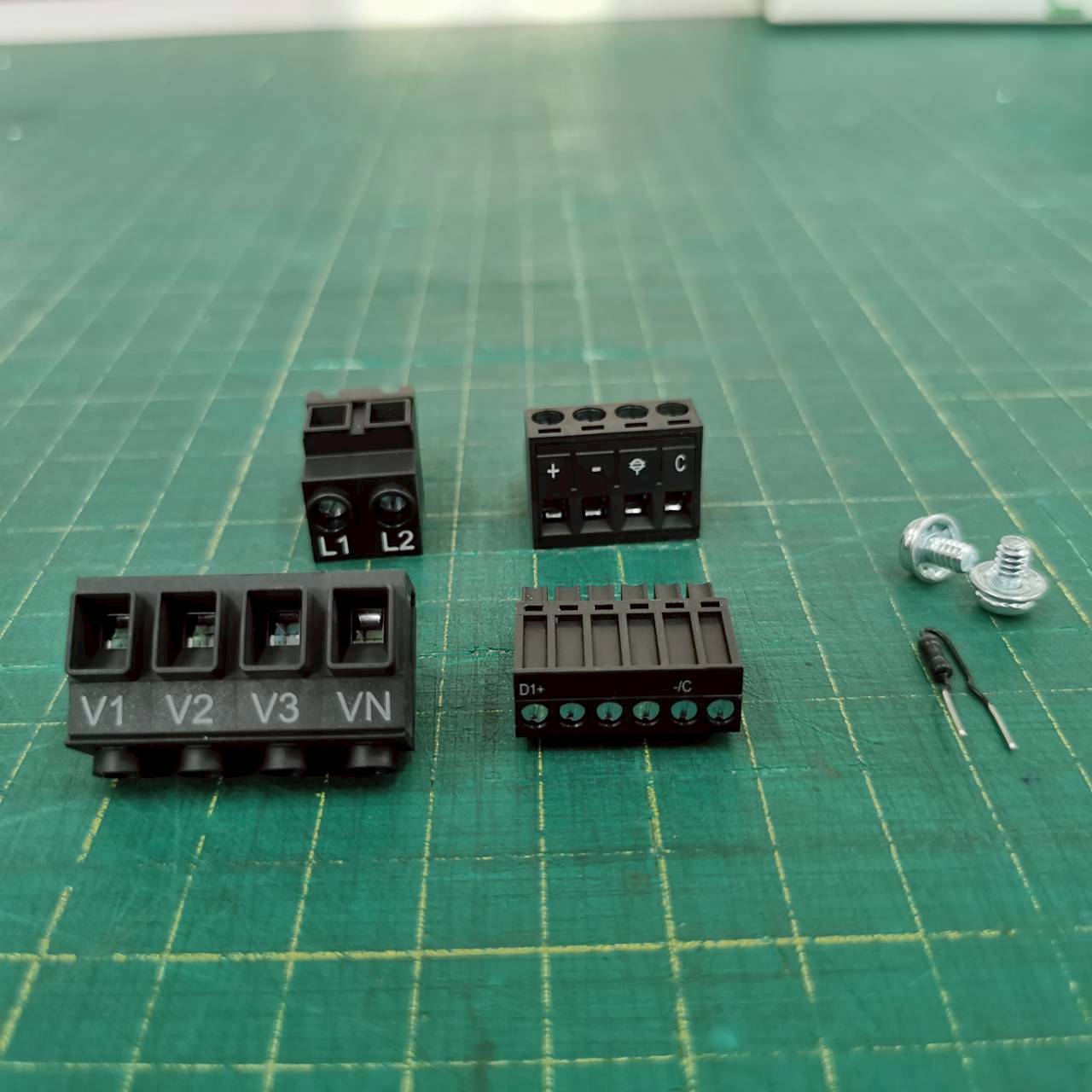

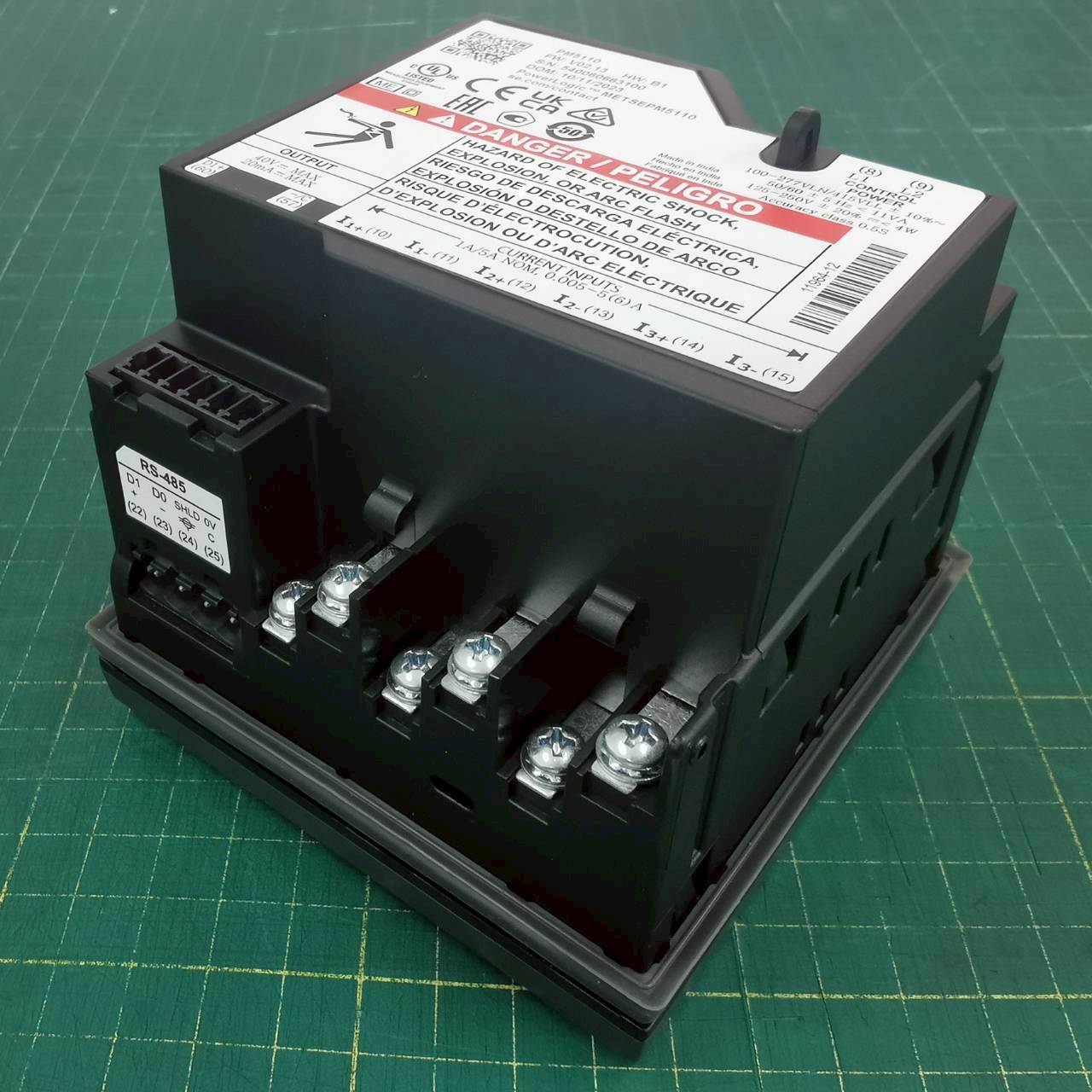

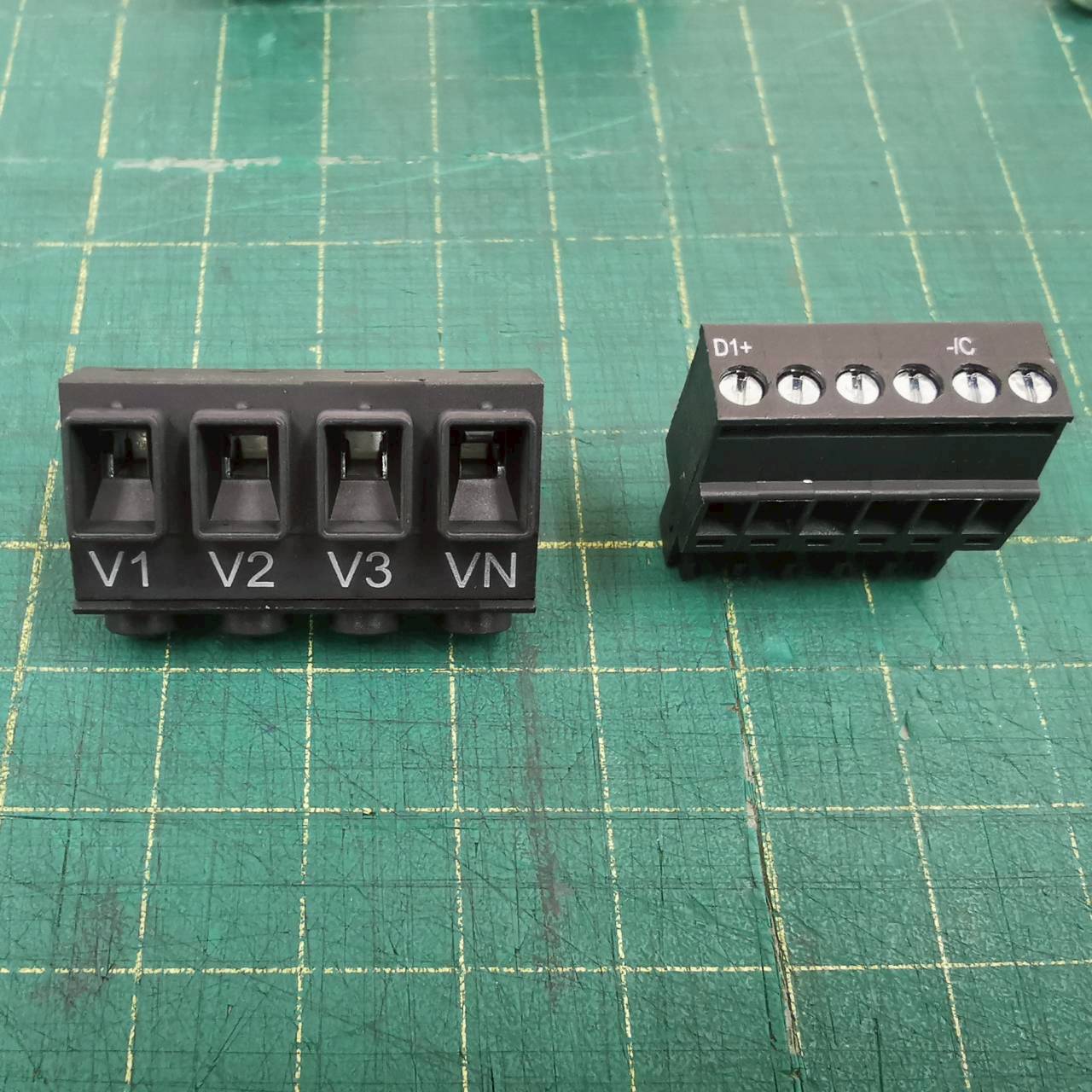

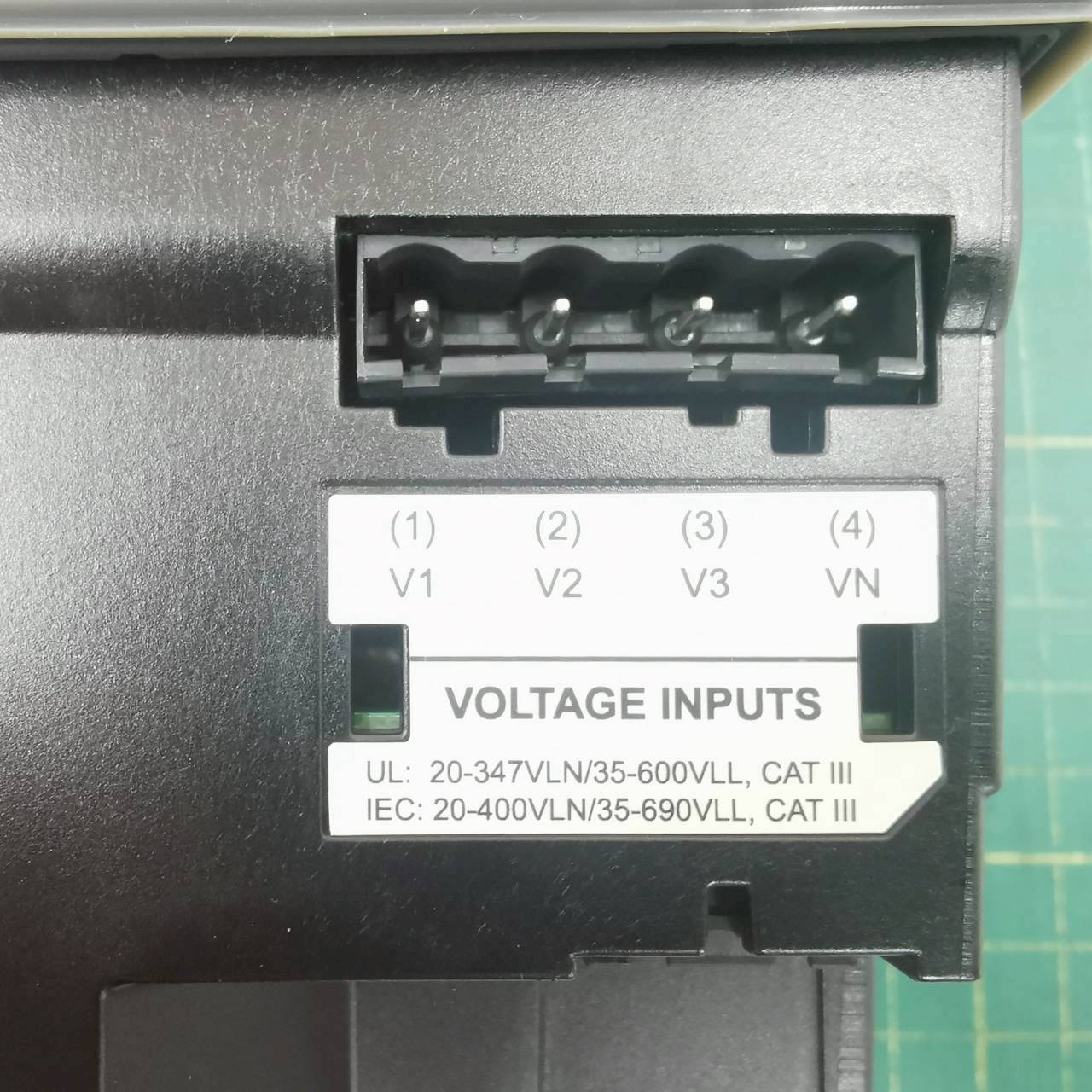

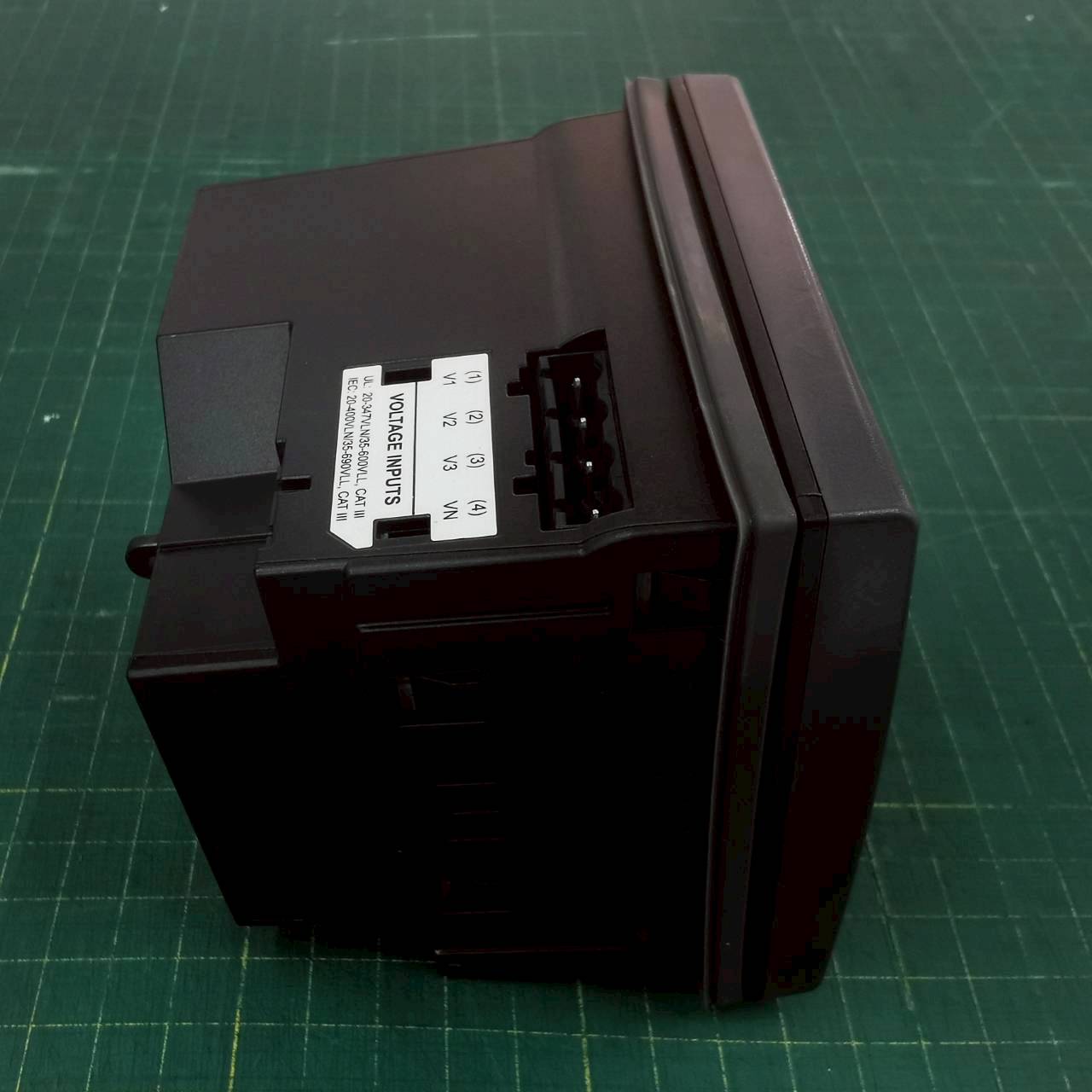

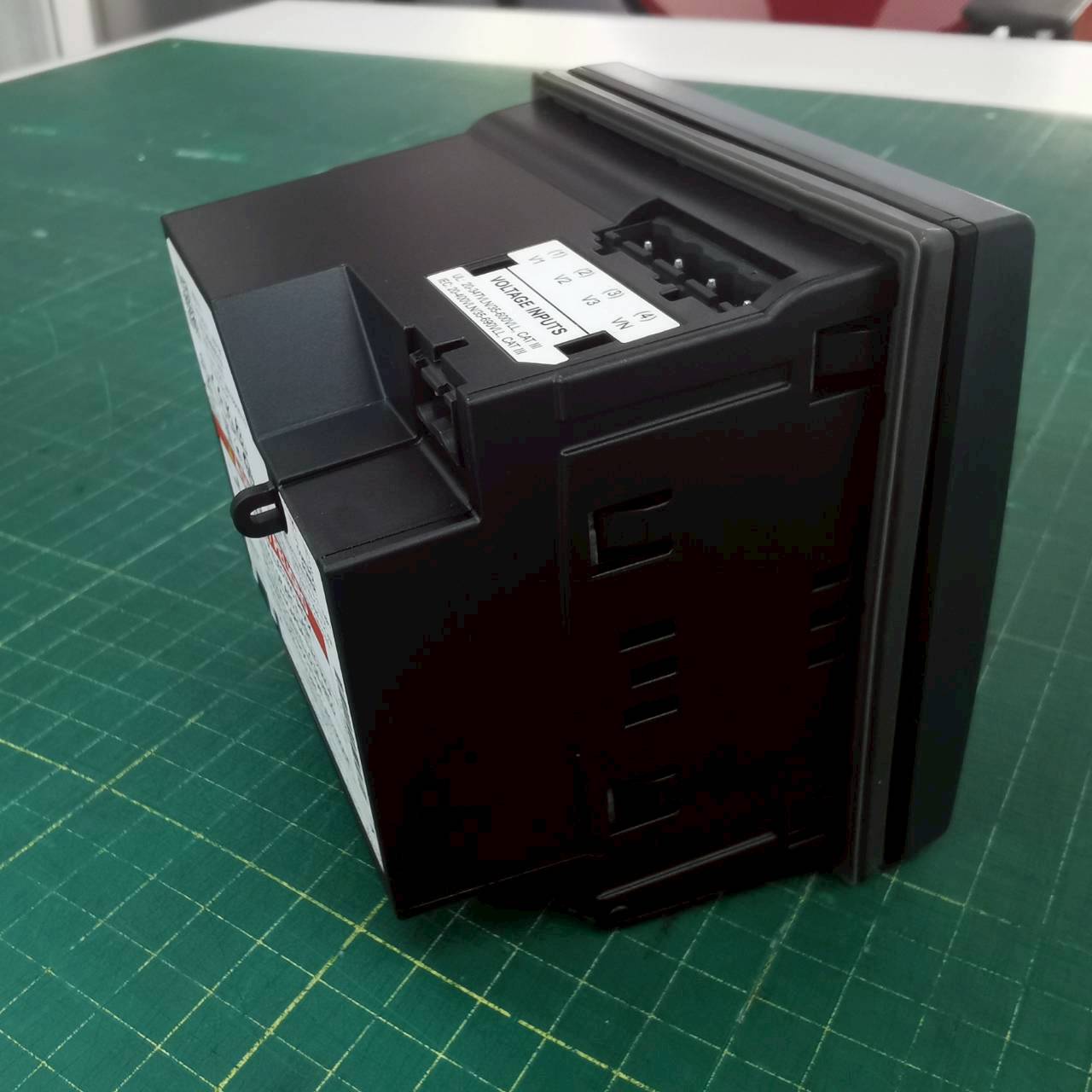

A - Voltage inputs (V1, V2, V3, VN)

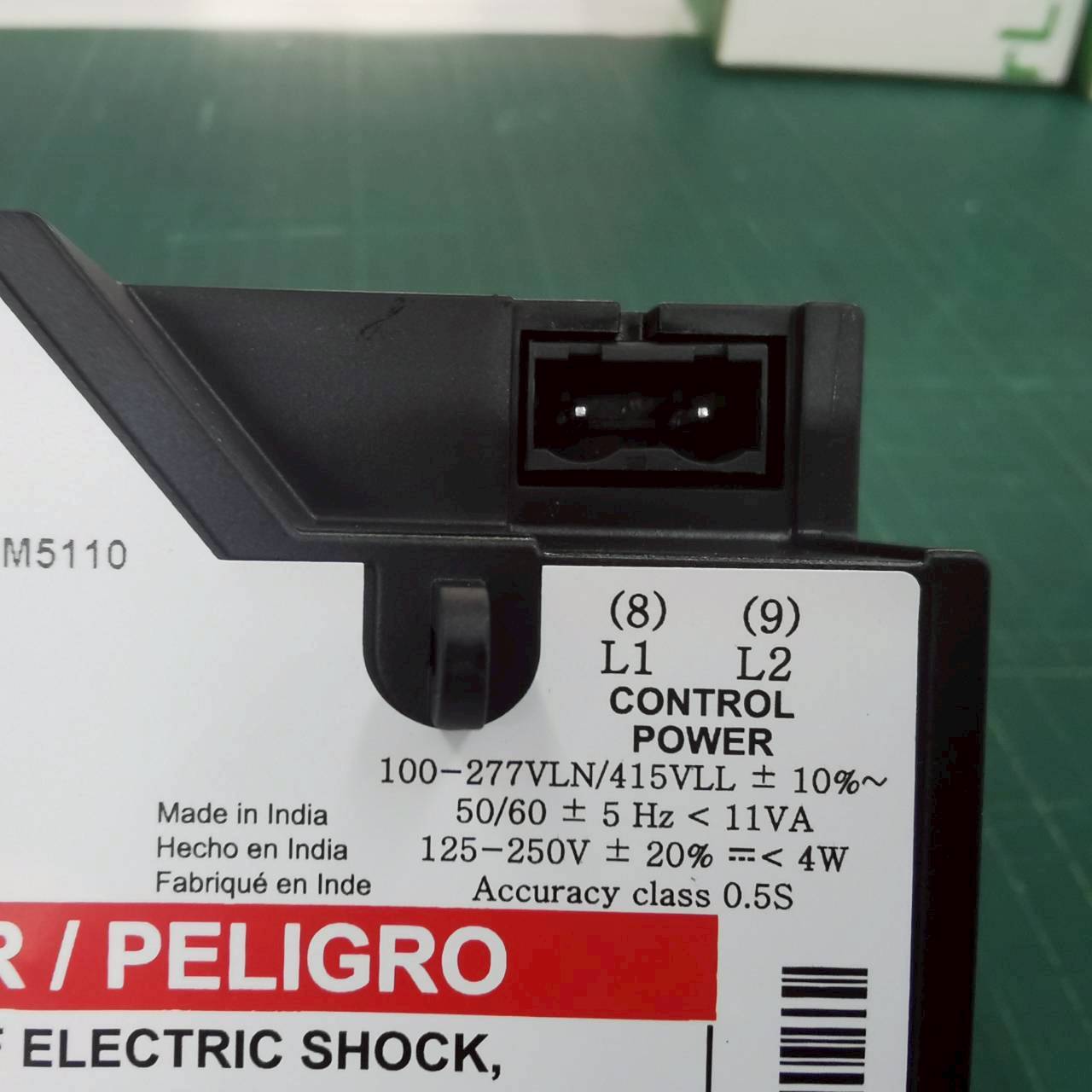

B - Control power (auxiliary power) (L1, L2)

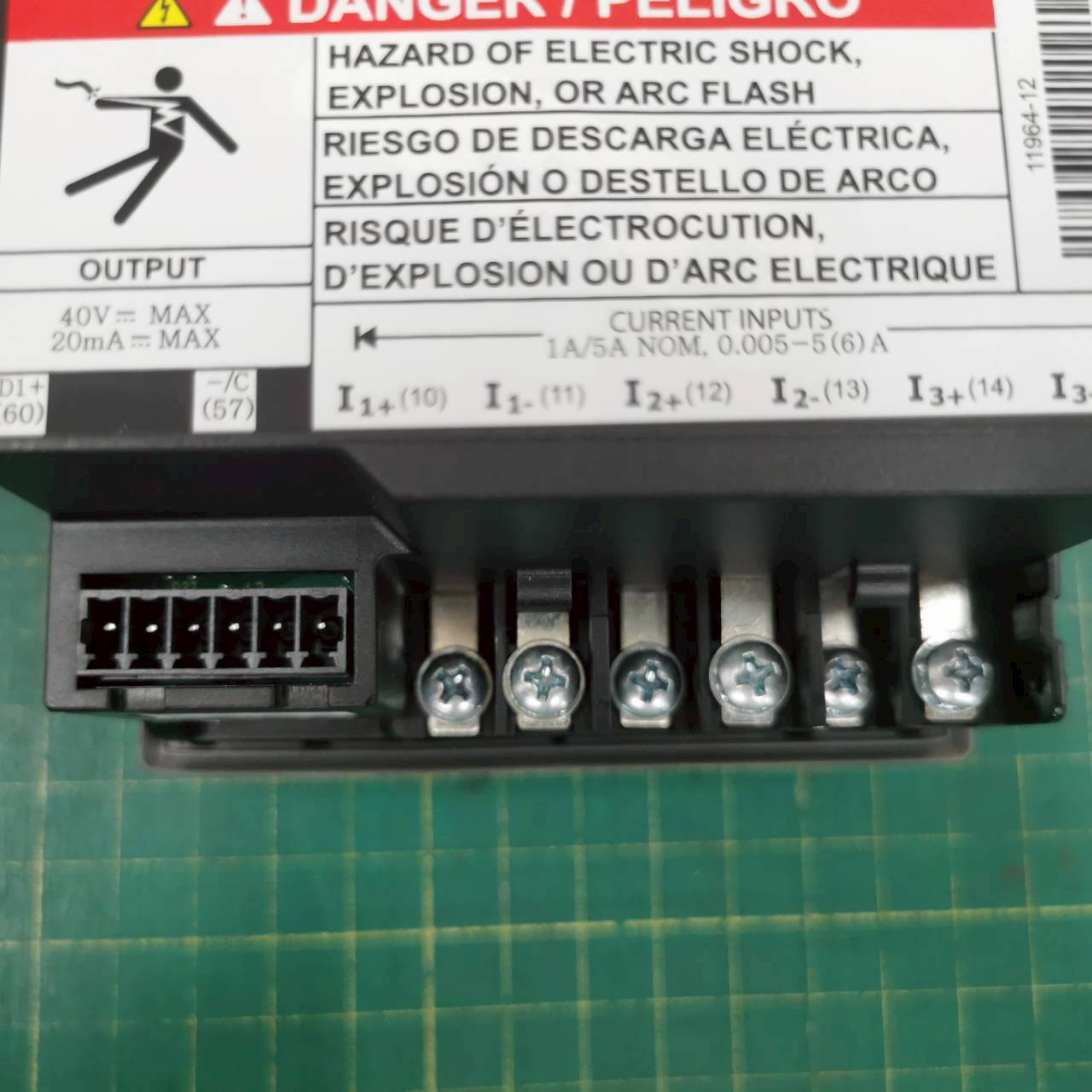

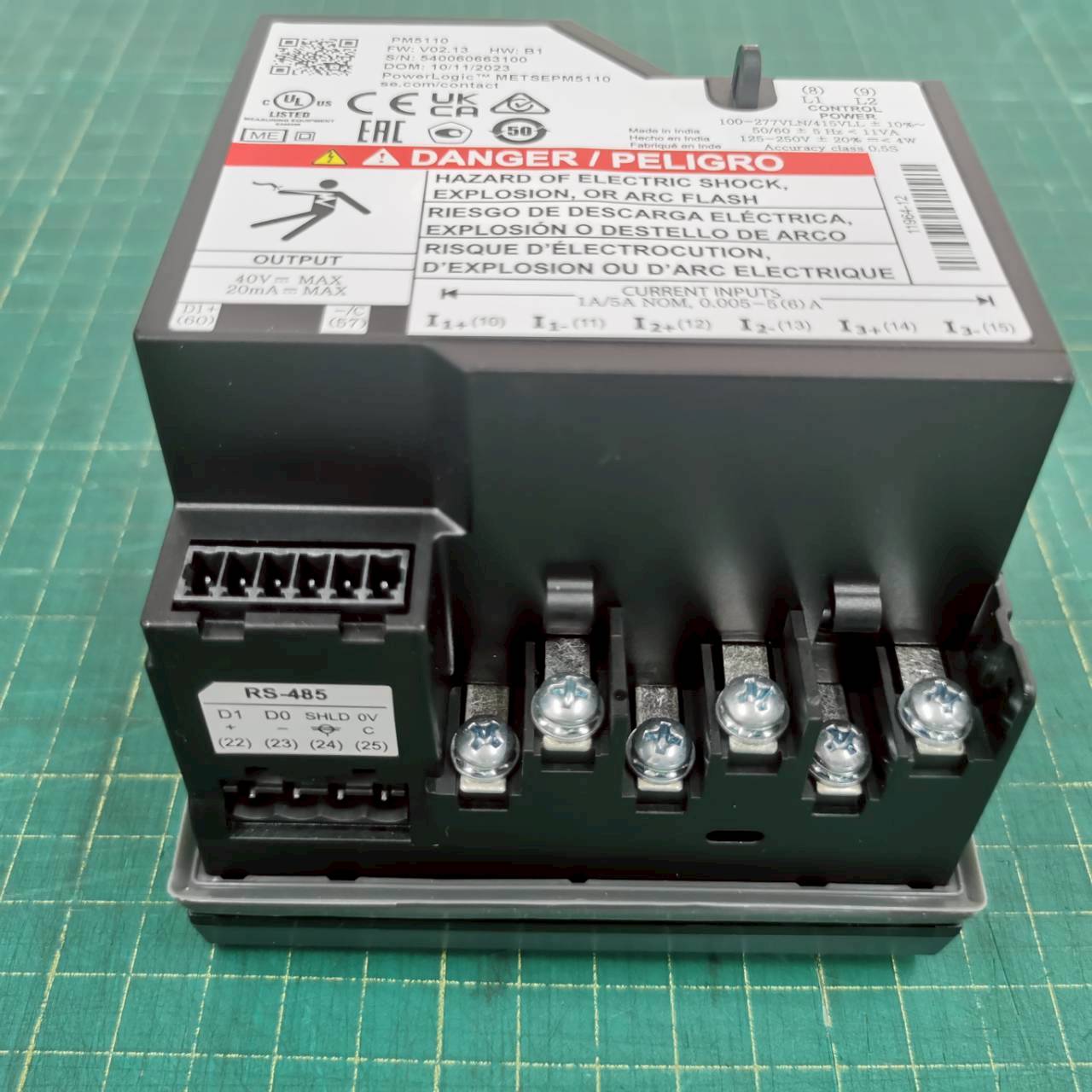

C - Current inputs (I1+, I1-, I2+, I2-, I3+, I3-)
D - Digital output (D1+, -/C)

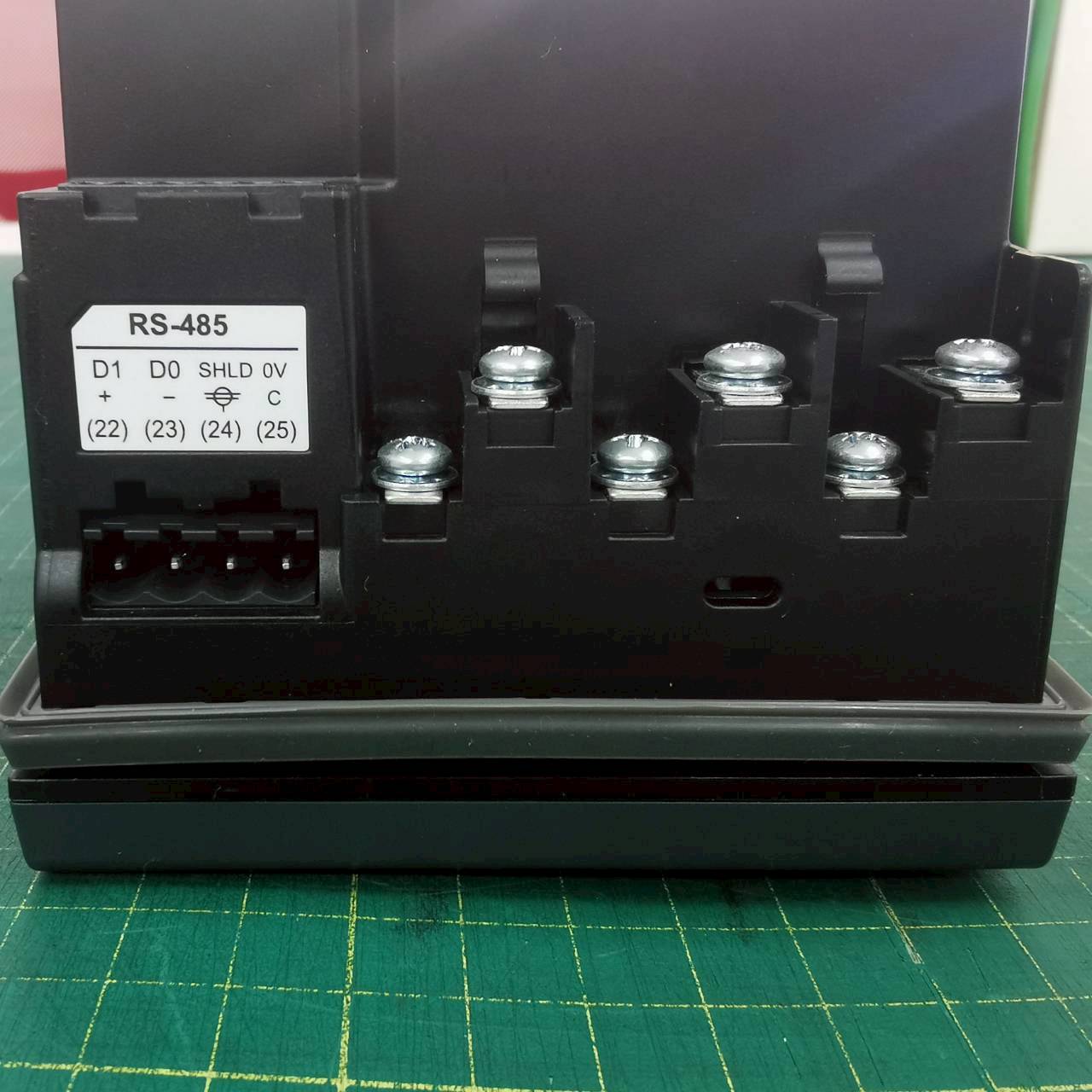

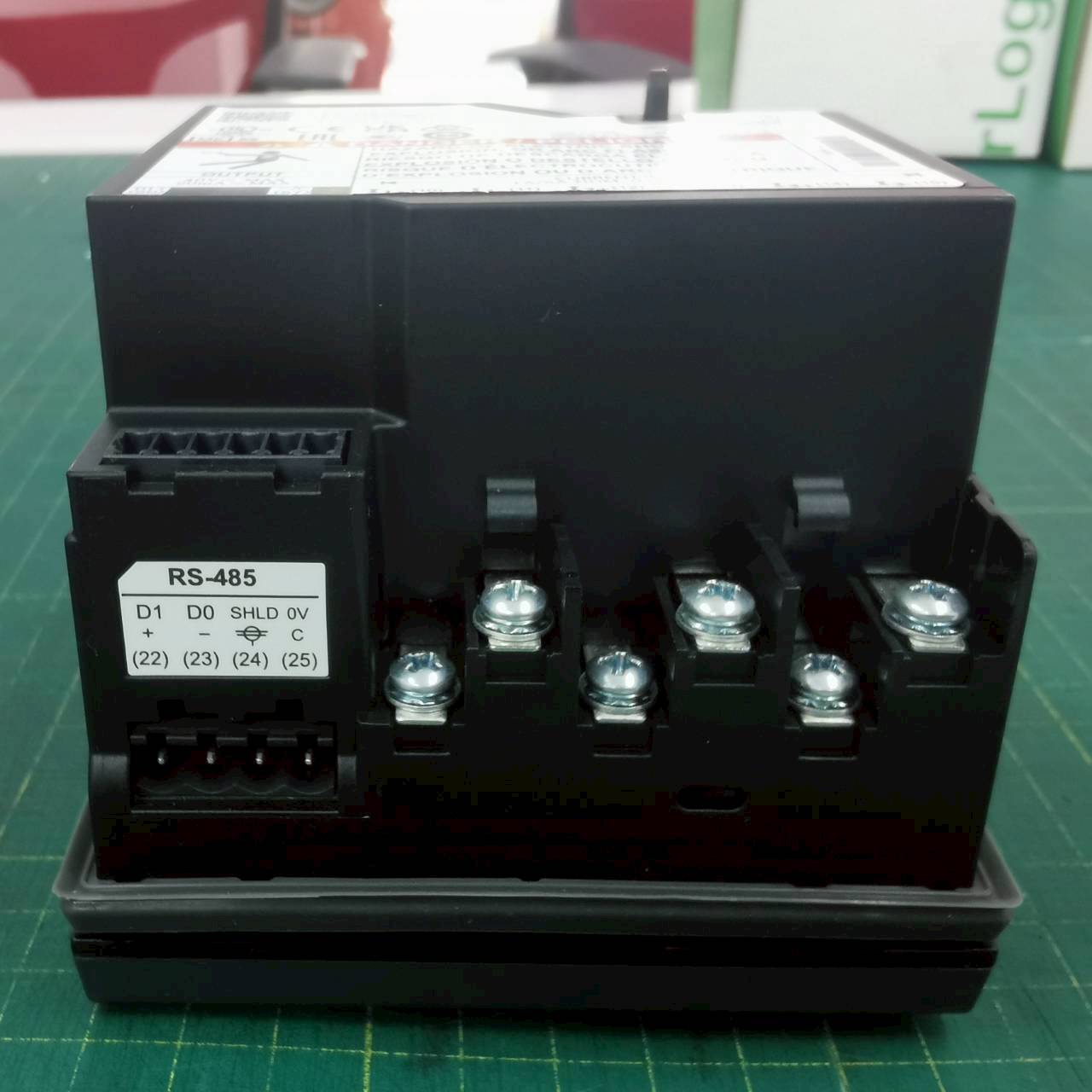

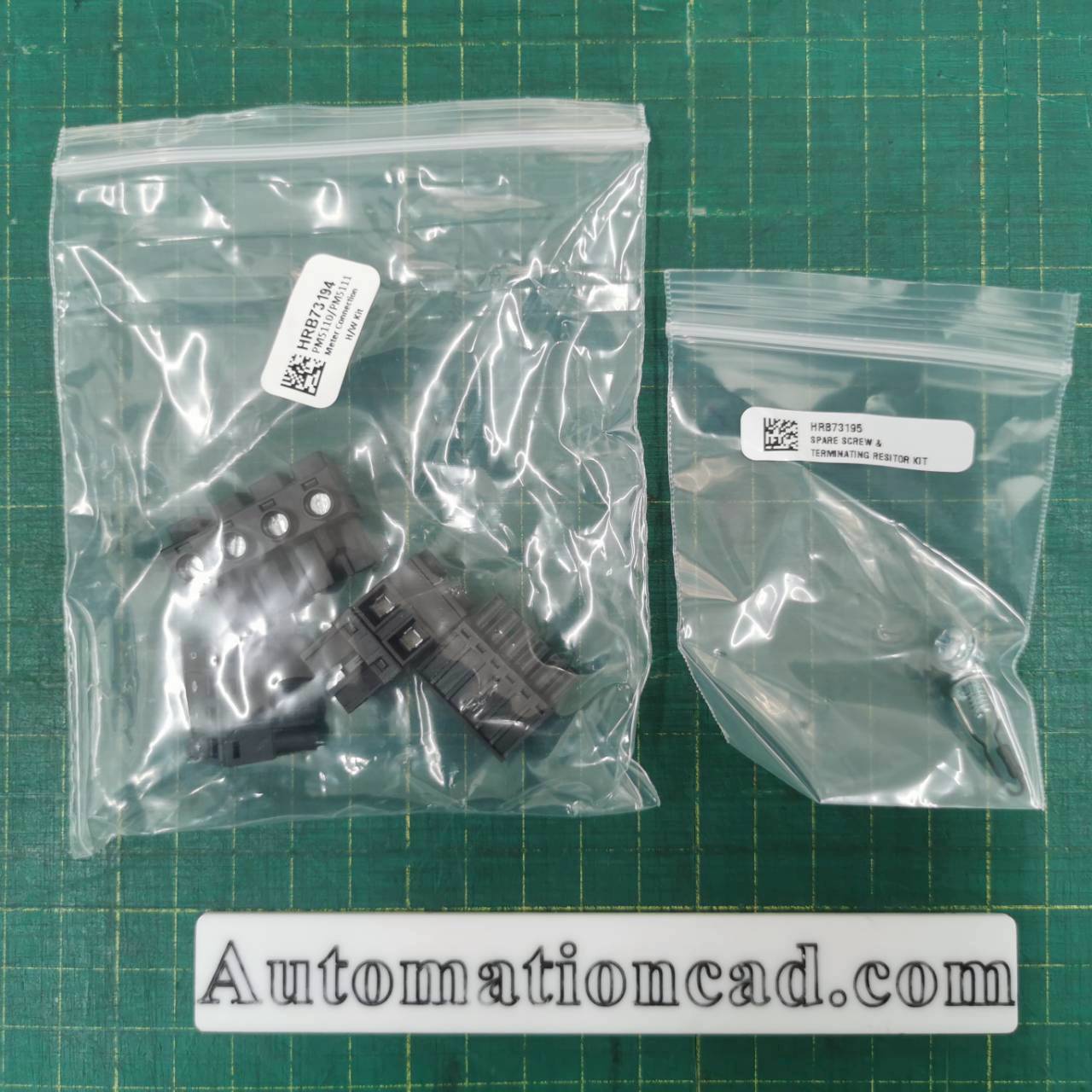

E - Communication port RS-485 (Only PM5110 and PM5111) (+, -, , C)
F - Gasket
G - Alarm / energy pulsing LED
H - Heartbeat / serial communications LED
I - Navigation / menu selection buttons
กดที่นี่ เพื่อไปหา ลิ้ง...
ดู MODBUS RS-485 Register List
วัดค่าทางไฟฟ้า เช่น I, U, F, P, Q, S, DPF, True PF, E, THD, individual Harmonic, % Unbalance
