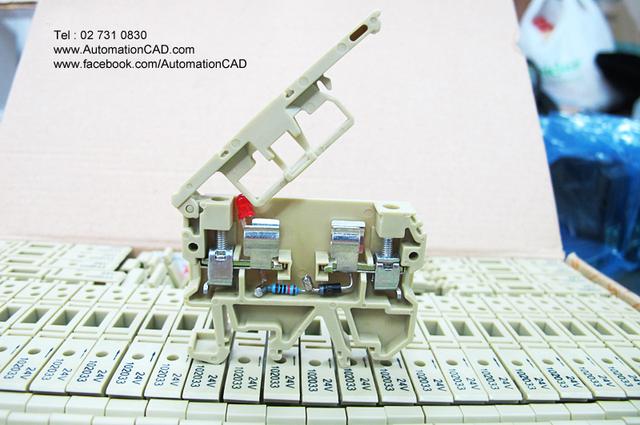

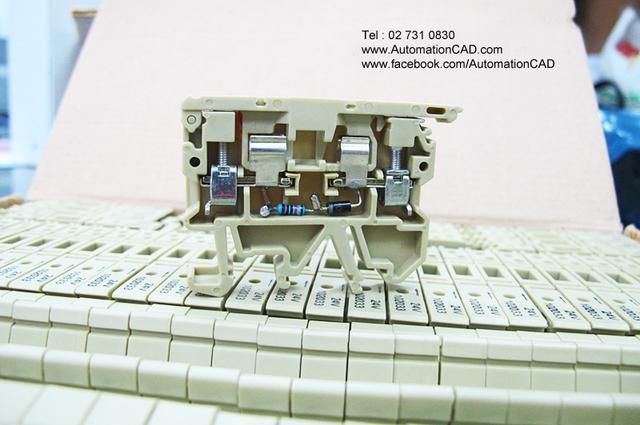

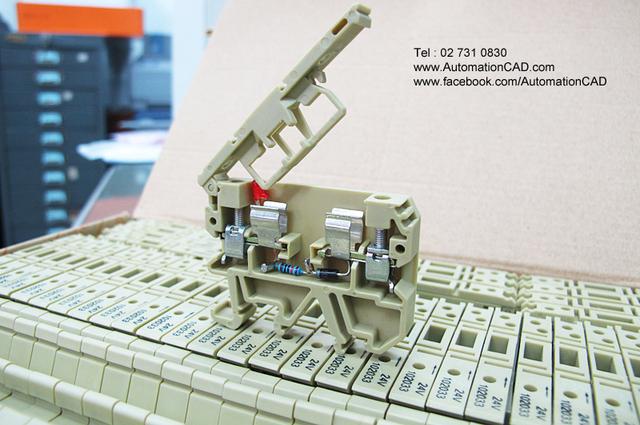

จำหน่าย Fuse Terminal เทอร์มินอล ฟิวส์ สำหรับตู้คอนโทรล
WJHK-4FLD

Terminal fuse สำหรับสายไฟขนาด 0.5 - 4 sq.mm. มี LED 24 Vdc (เพื่อแสดงสถานะฟิวส์ขาด)

ใช้ฟิวส์หลอดแก้ว ขนาด 5 x 20 mm. พิกัดกระแสสูงสุด ได้ 10 Amp.

วิธีการเลือกสั่ง สินค้า Ordering Data
LED 24VDC - WJHK-4FLD24V
LED 220VAC - WJHK-4FLD220V

ข้อมูลทางเทคนิค Techinical Data
- Clamped stranded conductor with ferrules 0.5 ... 2.5 mm2
- Clamped stranded conductor 1.5 ... 4 mm2
- Clamped single conductor 0.5 ... 4 mm2
- Rated impulse voltage/Pollution severity 2.5 KV/3
- Rated voltage/current/cross-section 4 mm2
- Tightening torque range (Nm) 0.4 ... 0.6
- Insulation stripping length (mm) 9
- Length/Width/Height 583 / 8 / 49 mm.

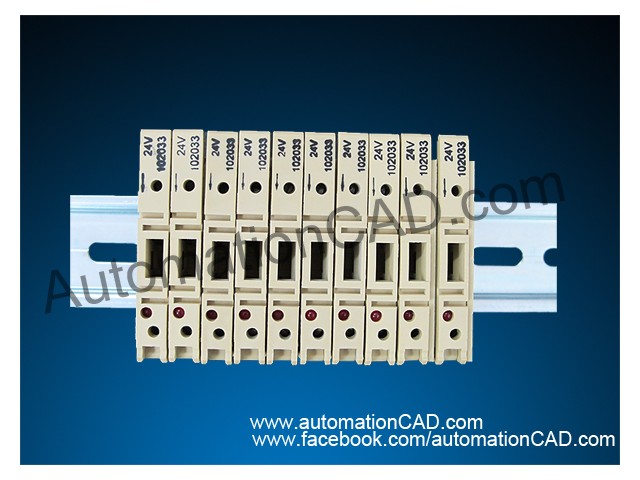

- Installation Din Rail 35 mm.
- Use with Cartridge fuse size 5 x 20 mm.
- Maximum allow Current 10 AMP.

วิธีการเลือกสั่ง สินค้า Ordering Data
LED for 24VDC - WJHK-4FLD/24V
LED for 220VAC - WJHK-4FLD/220V

• The blocks adopt the worldwide used steel pressure clamp connection system with the advantages of highcontact force, self-locking, vibration resistance, and loosening protection.
• The current bar plated with pliable tin guarantees a low electric resistance and excellent gas-tight.
• Insulation parts made of imported nylon have excellent pliability and fire resistance.
• The connect capacity ranges from 0.5 to 4 mm2 with terminals of test, disconnection, fuse types etc.
• Its composite-foot structure applies to three types of rails.
• Low voltage drop.
• High cost performance.

The material PA66 used in the Wired products is halogen-free. When the material burns, there are no combustion vapors which can lead to corrosive deposit. In addition, PA66 can function well in aggressive climate. PA66 has a good resistance to termites, anaerobes, funguses because it does not provide oxygen or other biological elements for microorganisms. PA66 is characterized by excellent resistance to oil, fats, alcohol, carbontetrachloride and other common detergent.

Standard color of the insulator is beige, Dark beige is available too
The insulation materials made from improved PA66 have excellent electrical and mechanical properties.

- Specific resistivity (Ω/cm) : > 1012 (VDE0303 T.30)
- Dielectric strength (kV/mm) : > (VDE0303 T.2)
- Comparative Tracking Index CTI (V) : 600 (VDE0303 T.1)
- Continuous service temperature (®C) : 100 (VDE0304 T.21)
- Lower temperature limit, static (®C) : -50
- Flammability according to Ul94 is HB or V0 : Ul94
