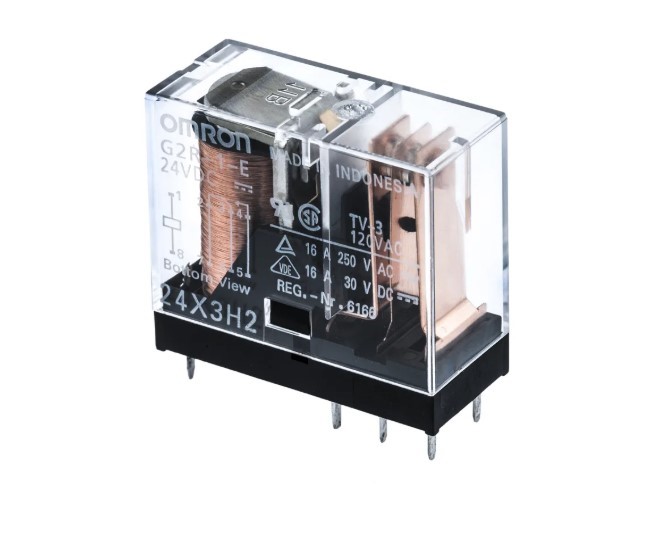

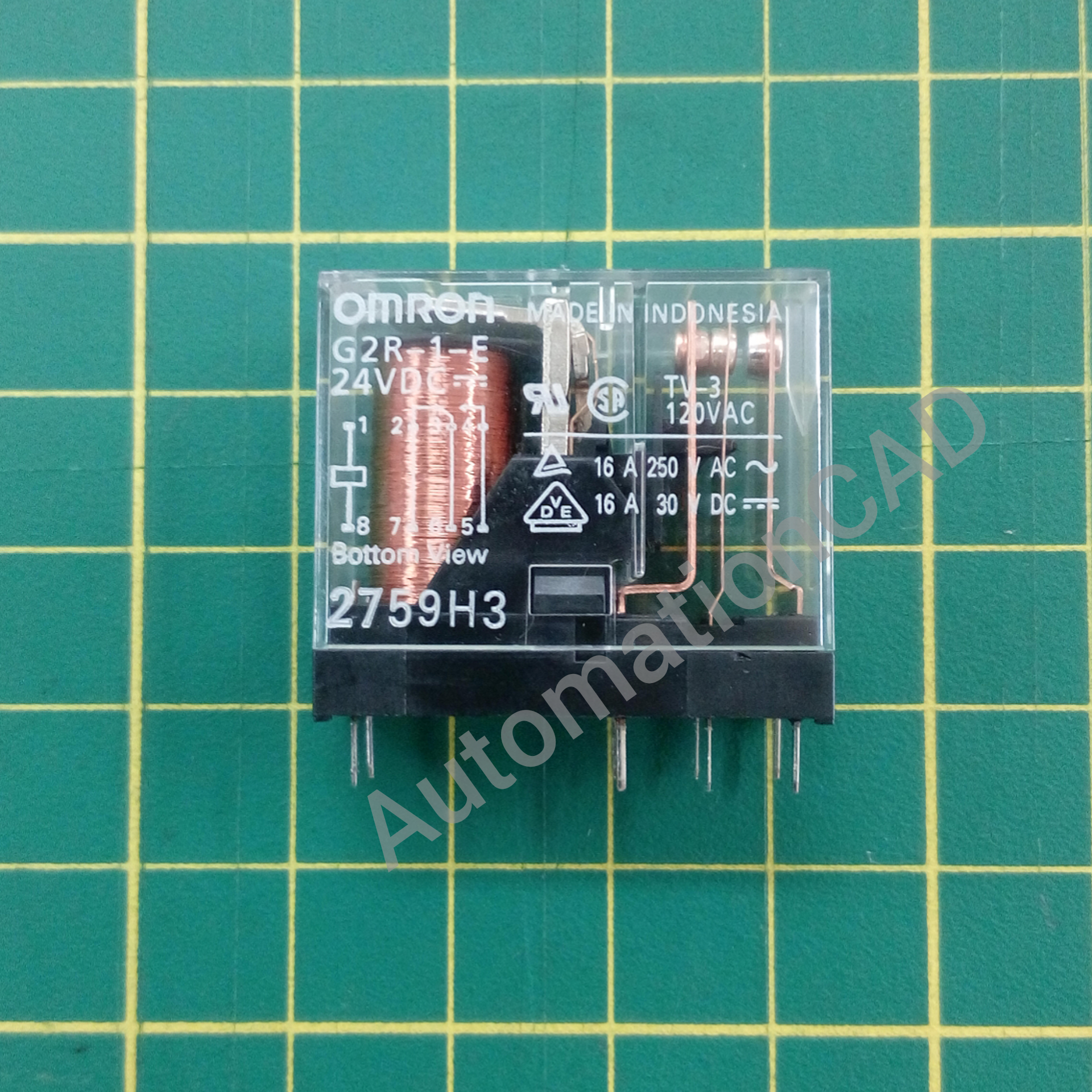

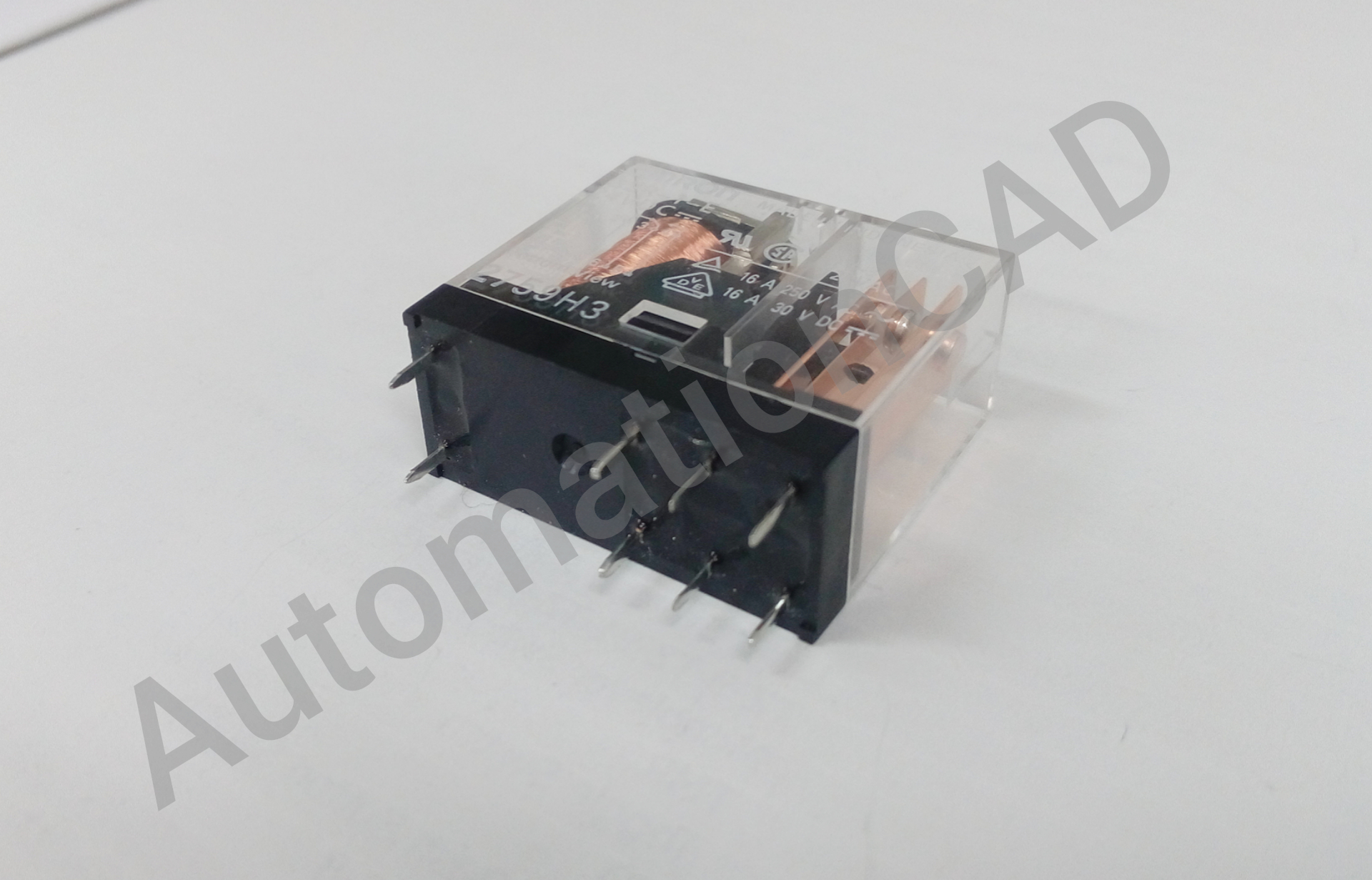

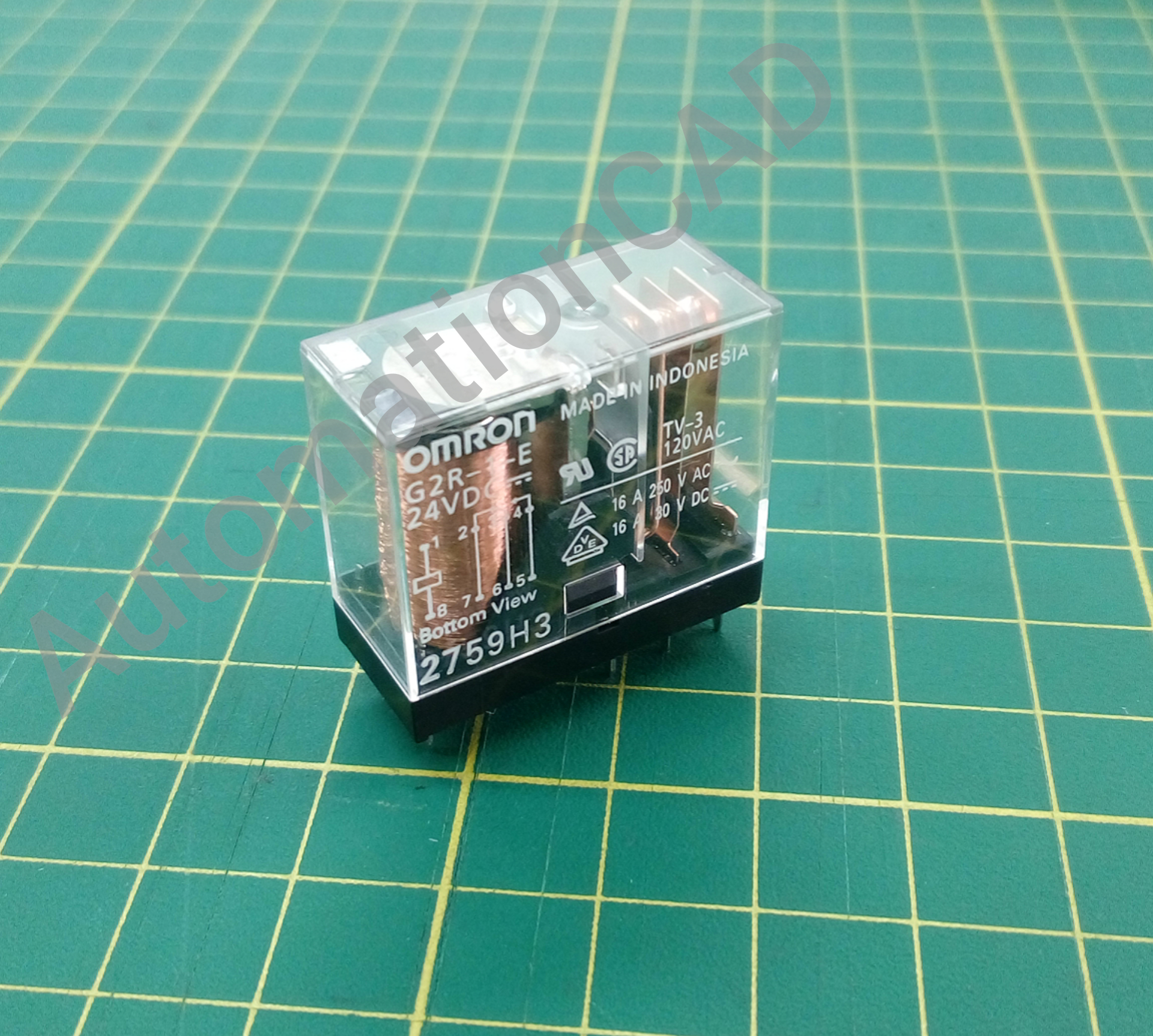

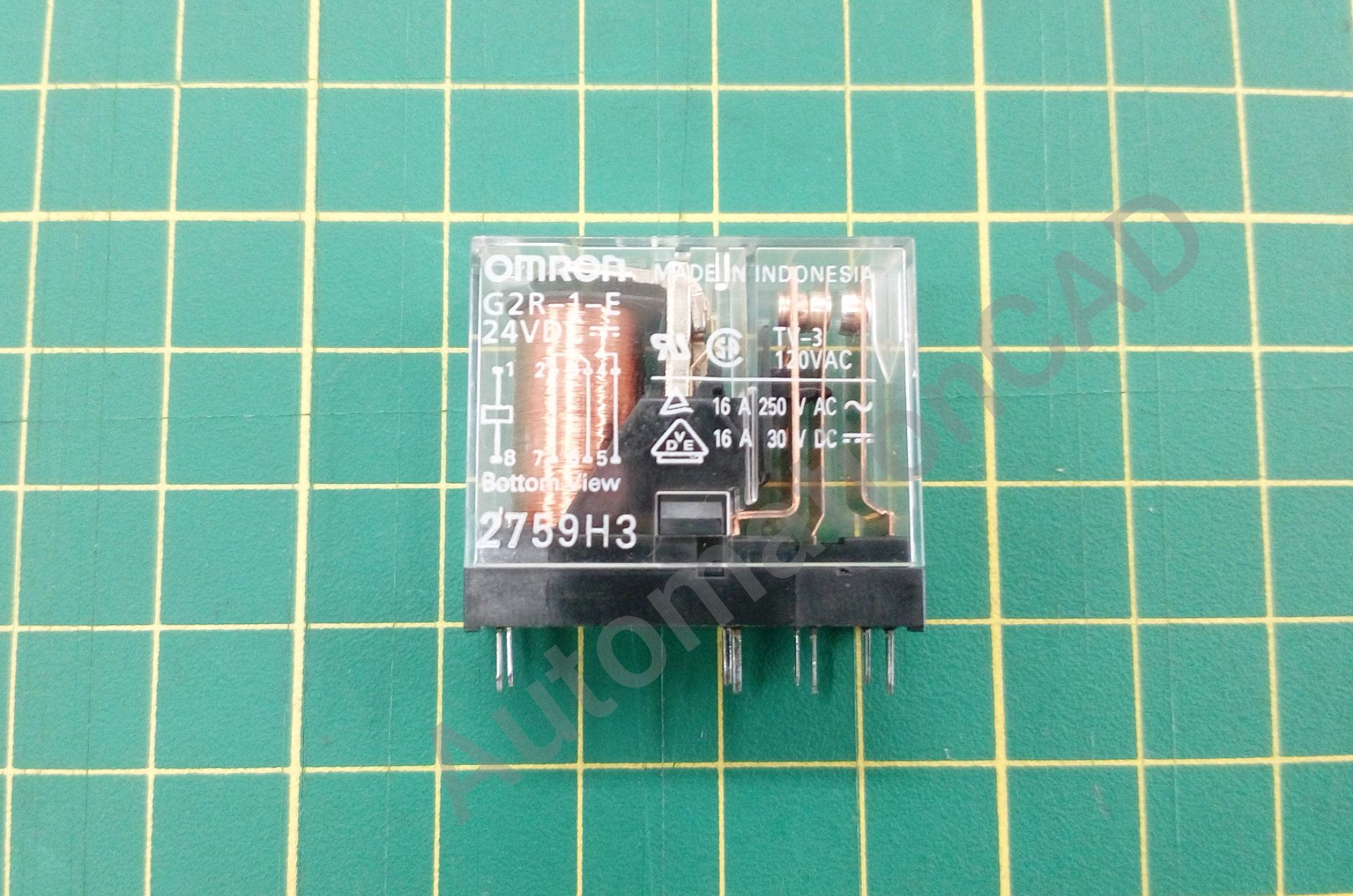

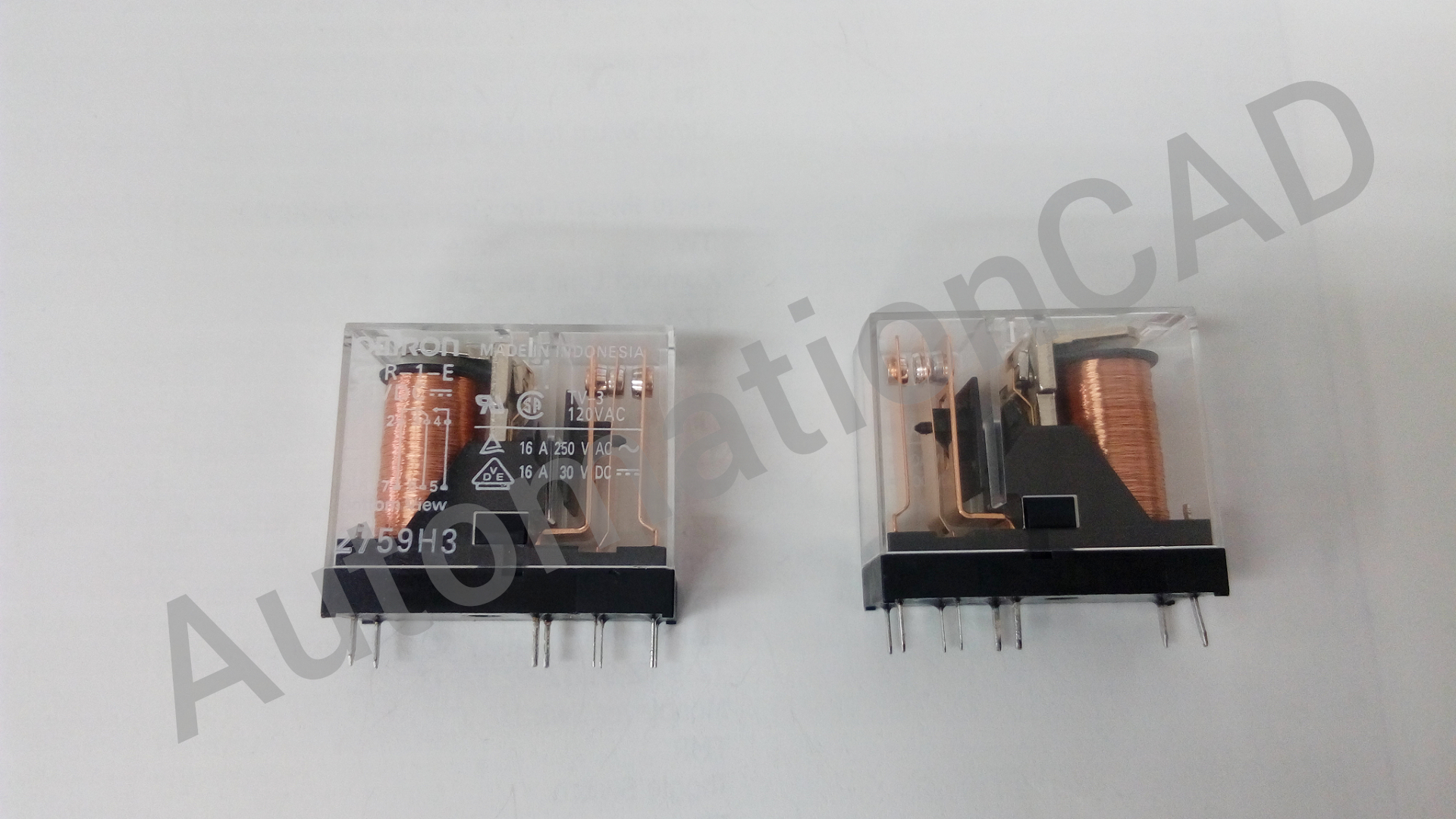

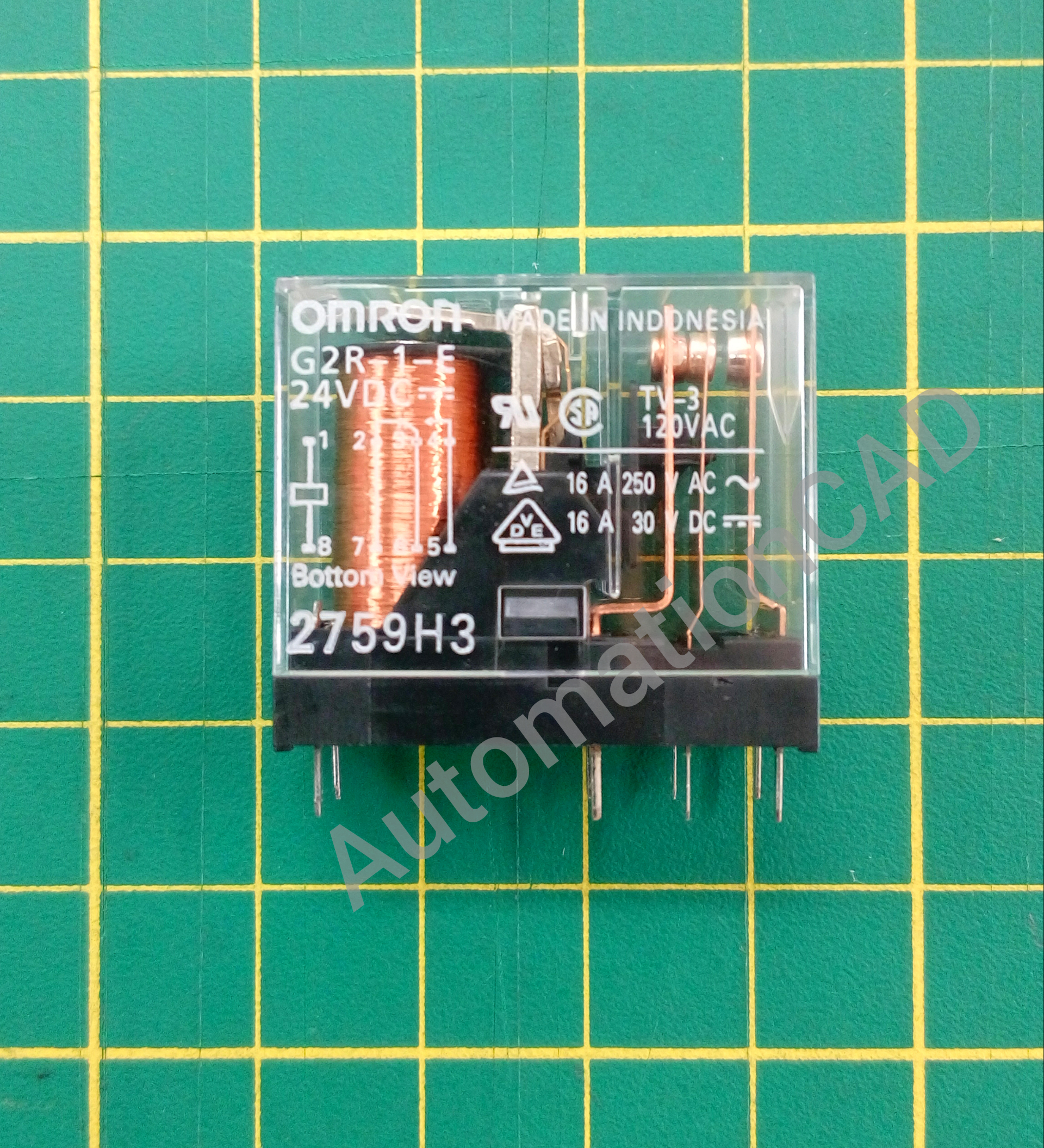

RELAY OMRON LED G2R-1-E-24VDC มี 1 CONTACT

สินค้า ต้อง  บวกภาษี มูลค่าเพิ่ม อีก 7%

**  กรุณาระบุ volt ของ coil relay ให้ชัดเจน **

เช่น  รีเลย์ ออมรอน G2R-1-E-24VDC


G2R-2-SND-24VDC OMRON RELAY

RELAY OMRON แท้

คำอธิบาย

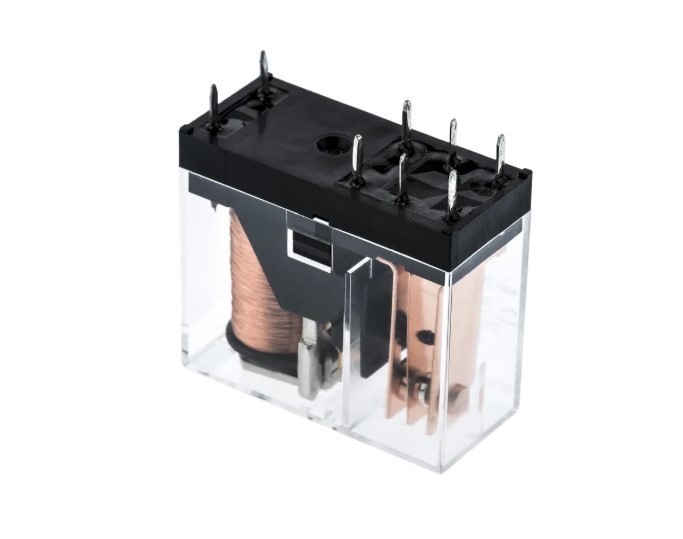

General Purpose Relay OMRON  รุ่น G2R สำหรับ Wiring ในตู้ control  ประหยัดพื้นที่ภายในตู้ได้ดี

เป็น Relay ราคาประหยัด ใช้ได้กับงานทั่วไป

คำอธิบายประกอบ Relay OMRON รุ่นต่างๆ  เพื่อให้เลือกใช้งานได้เหมาะสมที่สุด

Coil Ratings

Rated voltage		Rated current*		Coil resistance*	Coil inductance (H) (ref. value)		Must operate voltage	Must release voltage	Max. voltage	Power consumption (approx.)
		50 Hz	60 Hz		Armature OFF	Armature ON	% of rated voltage
AC	24 V	43.5 mA	37.4 mA	253 Ω	0.81	1.55	80% max.	30% max.	110%	0.9 VA at 60 Hz
	110 V	9.5 mA	8.2 mA	5,566 Ω	13.33	26.83
	120 V	8.6 mA	7.5 mA	7,286 Ω	16.13	32.46
	230 V	4.4 mA	3.8 mA	27,172 Ω	72.68	143.9
	240 V	3.7 mA	3.2 mA	30,360 Ω	90.58	182.34

Rated voltage		Rated current*	Coil resistance*	Coil inductance (H) (ref. value)		Must operate voltage	Must release voltage	Max. voltage	Power consumption (approx.)
				Armature OFF	Armature ON	% of rated voltage
DC	6 V	87.0 mA	69 Ω	0.25	0.48	70% max.	15% min.	110%	0.53 W
	12 V	43.2 mA	278 Ω	0.98	2.35
	24 V	21.6 mA	1,113 Ω	3.6	8.25
	48 V	11.4 mA	4,220 Ω	15.2	29.82

* The rated current and coil resistance are measured at a coil temperature of 23°C with tolerances of ±10%.

Coil Ratings.
• Rated voltage 24 V dc.
• Rated current 21.8 mA.
• Coil resistance 1100 Ω.
• Must operate voltage 70% max.
• Must release voltage 15% minimum.
• Maximum voltage 170% at 23°C.

Contact Ratings

Number of poles	1 pole		2 poles
Load	Resistive load (cosΦ = 1)	Inductive load (cosΦ = 0.4; L/R = 7 ms)	Resistive load (cosΦ = 1)	Inductive load (cosΦ = 0.4; L/R = 7 ms)
Rated load	10 A at 250 VAC; 10 A at 30 VDC	7.5 A at 250 VAC; 5 A at 30 VDC	5 A at 250 VAC; 5 A at 30 VDC	2 A at 250 VAC; 3 A at 30 VDC
Rated carry current	10 A		5 A
Max. switching voltage	440 VAC, 125 VDC		380 VAC, 125 VDC
Max. switching current	10 A		5 A
Max. switching power	2,500 VA, 300 W	1,875 VA, 150 W	1,250 VA, 150 W	500 VA, 90 W
Failure rate (reference value)	100 mA at 5 VDC		10 mA at 5 VDC

Note: P level: λ60 = 0.1 x 10^-6/operation

Characteristics

Item	1 pole	2 poles
Contact resistance	100 mΩ max.
Operate (set) time	15 ms max.
Release (reset) time	AC: 10 ms max.; DC: 5 ms max. (w/built-in diode: 20 ms max.)	AC: 15 ms max.; DC: 10 ms max. (w/built-in diode: 20 ms max.)
Max. operating frequency	Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr (under rated load)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength	5,000 VAC, 50/60 Hz for 1 min between coil and contacts*; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity	5,000 VAC, 50/60 Hz for 1 min between coil and contacts*; 3,000 VAC, 50/60 Hz for 1 min between contacts of different polarity 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance	Destruction: 1,000 m/s2 Malfunction: 200 m/s2 when energized; 100 m/s2 when not energized
Endurance	Mechanical: AC coil: 10,000,000 operations min.; DC coil: 20,000,000 operations min. (at 18,000 operations/hr) Electrical: 100,000 operations min. (at 1,800 operations/hr under rated load) (DC coil type)
Ambient temperature	Operating: -40°C to 70°C (with no icing or condensation)
Ambient humidity	Operating: 5% to 85%
Weight	Approx. 21 g

Note: Values in the above table are the initial values.
*4,000 VAC, 50/60 Hz for 1 minute when the P2R-05A or P2R-08A Socket is mounted.

1-pole

Model	Contact form	Coil ratings	Contact ratings	Number of test operations
G2R-1A-E	SPST-NO (1a)	3 to 120 VDC 6 to 240 VAC	16 A, 250 VAC (General Use) at 40°C	30,000
G2R-1-E	SPDT (1c)		16 A, 30 VDC (Resistive) at 40°C	6,000
			TV-3 (N. O. only) at 40°C	25,000
